Camshaft Position Sensor: Inspection

  1. INSPECT CAMSHAFT POSITION SENSOR
    1. Measure the resistance of the sensor.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      1 - 2 Cold 1.630 to 2.740 Ω
      1 - 2 Hot 2.065 to 3.225 Ω

      If the result is not as specified, replace the camshaft position sensor.

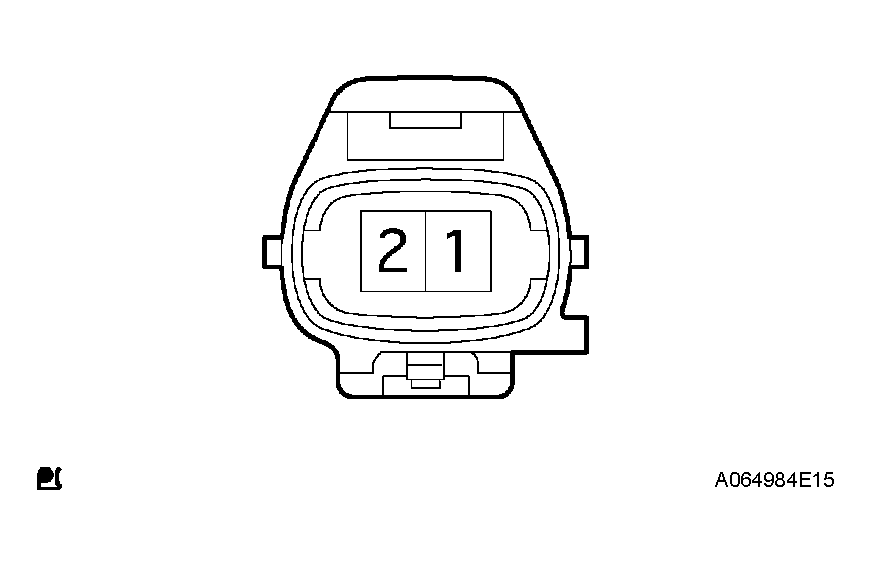

      Fig 1: Identifying Camshaft Position Sensor Connector Terminals
      G04153185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: The terms cold and hot refer to the temperature of the sensors. Cold means approximately -10 to 50°C (14 to 122°F). Hot means approximately 50 to 100°C (122 to 212°F).
