Camshaft Position Sensor: Installation

INSTALL CAMSHAFT POSITION SENSOR
1. Install the sensor with the bolt.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

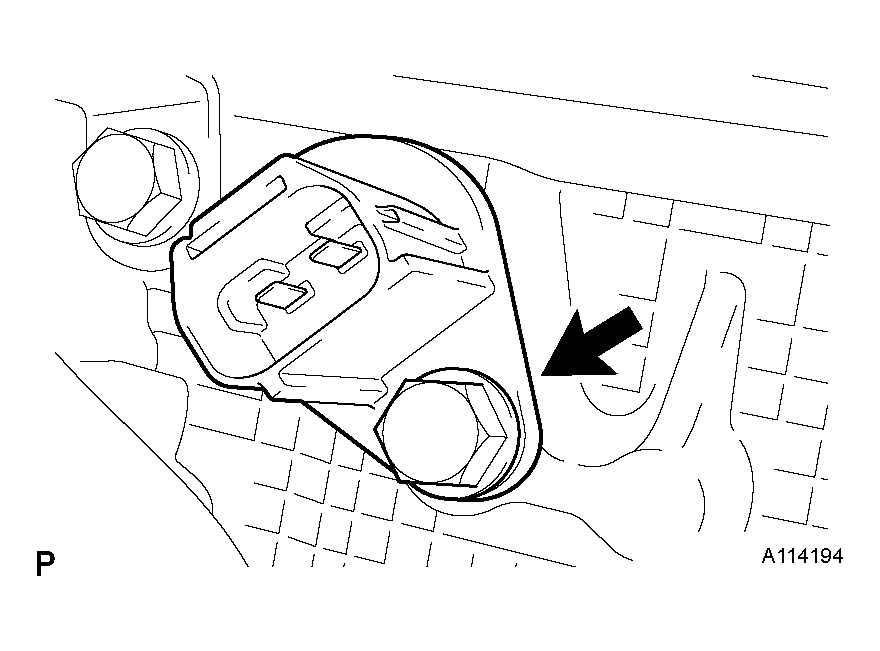

  Fig 1: Installing Sensor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the sensor connector.

  Fig 2: Connecting Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT ENGINE WIRE
1. Connect the 2 clamps of the engine wire.
INSTALL AIR CLEANER ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

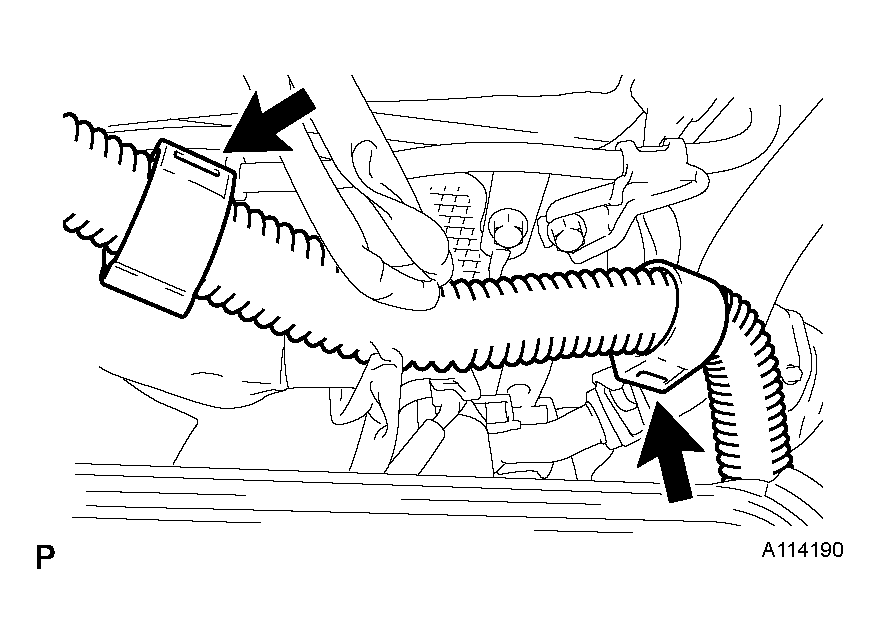

  Fig 3: Connecting Clamps Of Engine Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
