Camshaft Timing Oil Control Valve Assembly: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Apply a light coat of engine oil to a new O-ring.
2. Install the O-ring to the oil control valve.
3. Install the oil control valve with the bolt.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
4. Connect the oil control valve connector.

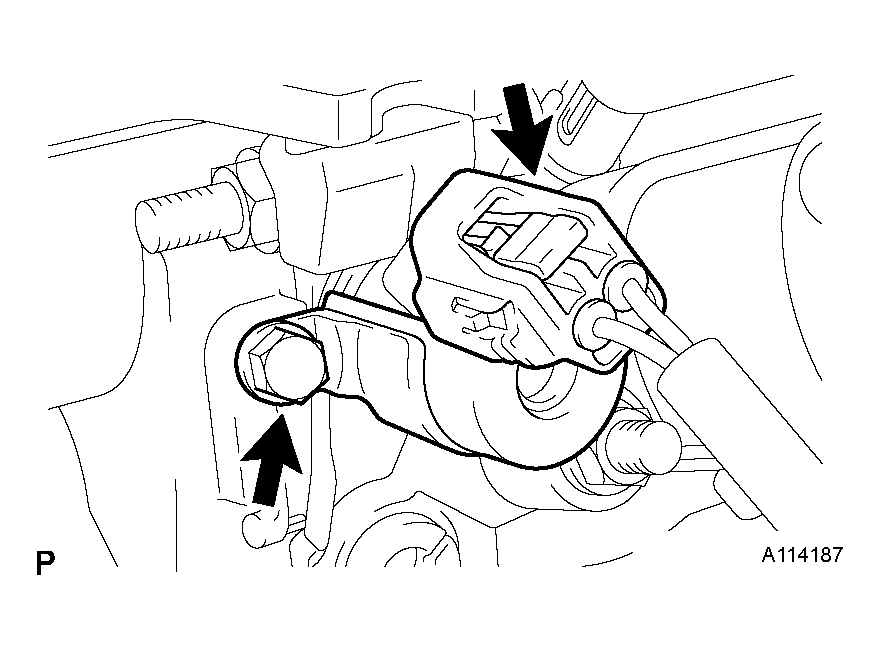

  Fig 1: Installing Oil Control Valve With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FAN BELT ADJUSTING BAR
1. Temporarily install the adjusting bar with the bolt and nut.
2. Adjust the drive belt tension (see REMOVAL ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

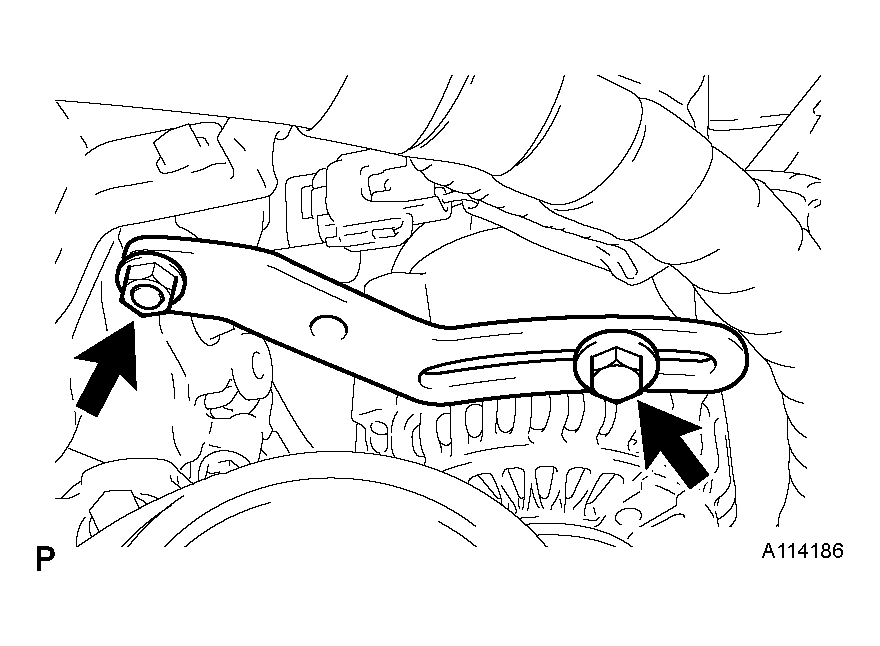

  Fig 2: Installing Adjusting Bar With Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
