Crankshaft Position Sensor: Inspection

INSPECT CRANKSHAFT POSITION SENSOR

Measure the resistance of the sensor.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
1 - 2	Cold	985 to 1.600 Ω
1 - 2	Hot	1.265 to 1.890 Ω

If the result is not as specified, replace the crankshaft position sensor.

NOTE: The terms cold and hot refer to the temperature of the sensors. Cold means approximately -10 to 50°C (14 to 122°F). Hot means approximately 50 to 100°C (122 to 212°F).

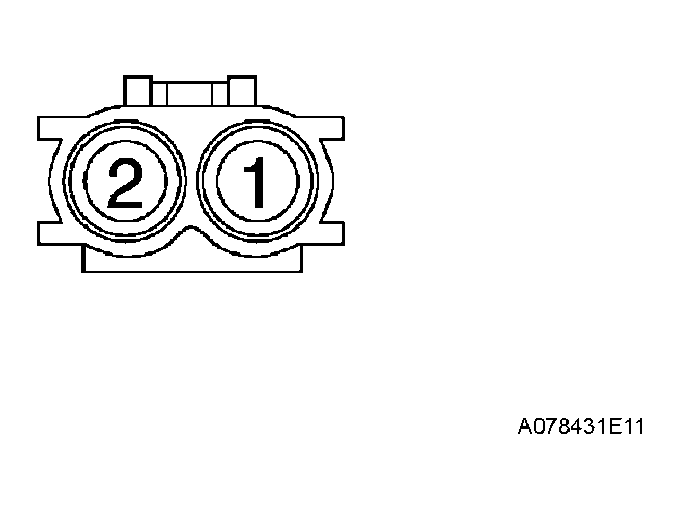

Fig 1: Identifying Crankshaft Position Sensor Connector Terminals
