Crankshaft Position Sensor: Installation

INSTALL CRANKSHAFT POSITION SENSOR
1. Install the sensor with the bolt.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
2. Connect the sensor connector.
INSTALL ENGINE UNDER COVER RH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

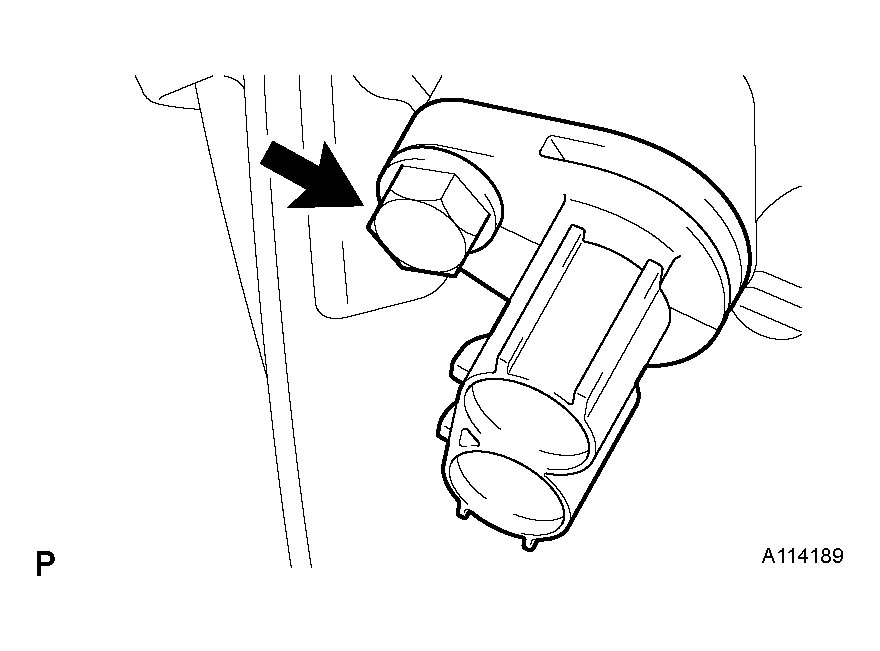

Fig 1: Installing Sensor With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
