Engine Coolant Temperature Sensor: Installation

INSTALL ENGINE COOLANT TEMPERATURE SENSOR
1. Install a new gasket to the sensor.

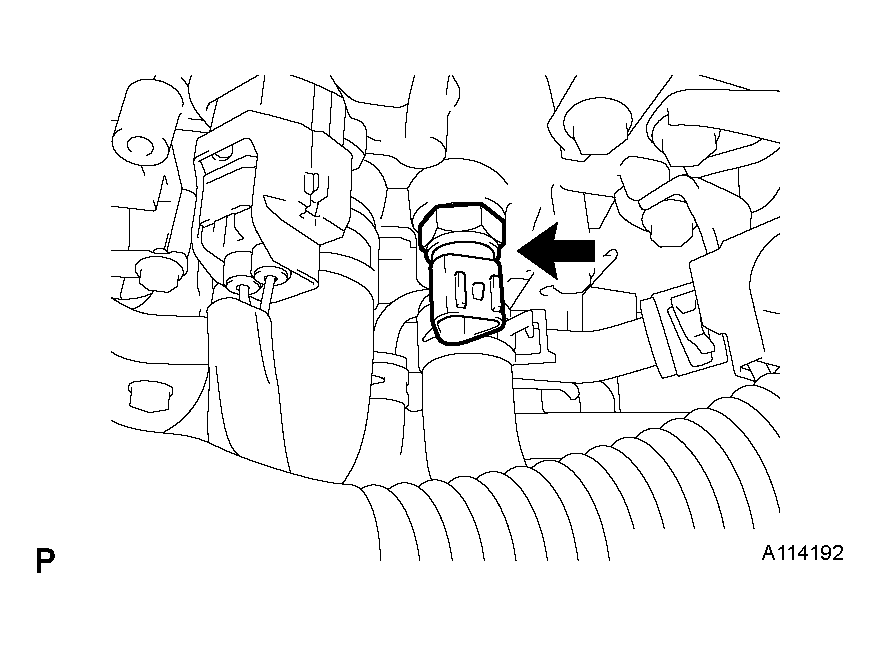

2. Install the sensor.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  Fig 1: Installing Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

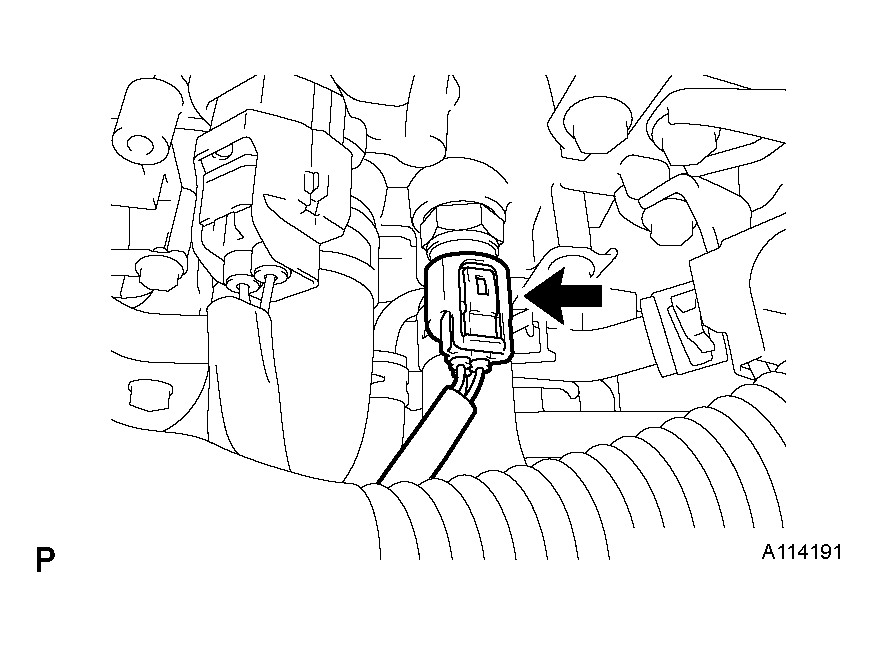

3. Connect the sensor connector.

  Fig 2: Connecting Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

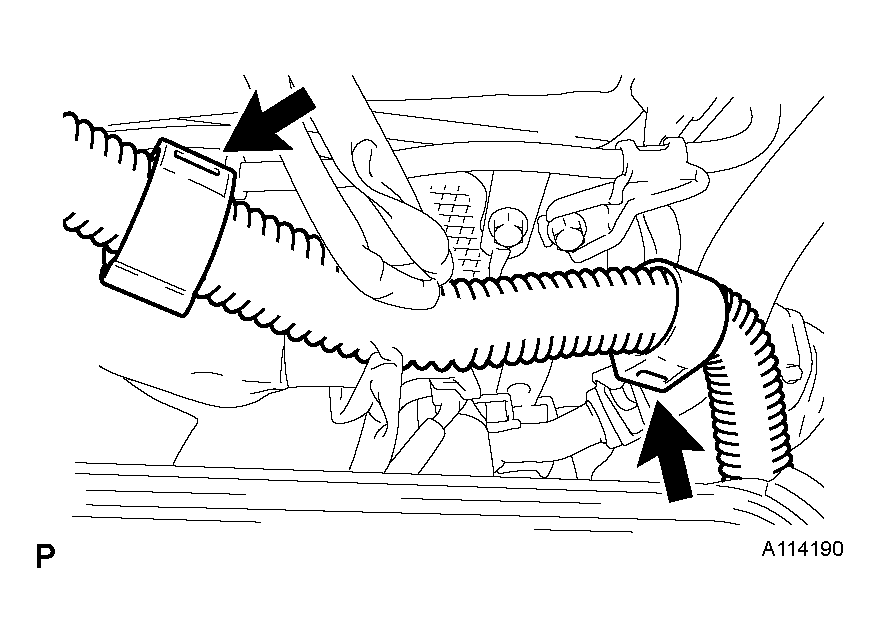

CONNECT ENGINE WIRE
1. Connect the 2 clamps of the engine wire.
INSTALL AIR CLEANER ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  Fig 3: Connecting Clamps Of Engine Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
