Idle Air Control Valve: Installation

  1. INSTALL IDLE AIR CONTROL VALVE ASSEMBLY
    1. Install a new gasket and the valve with the 3 screws.

      Torque: 3.4 N*m (35 kgf*cm, 30 in.*lbf)

  2. INSTALL THROTTLE BODY ASSEMBLY
    1. Install the throttle body (see INSPECTION  ).
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

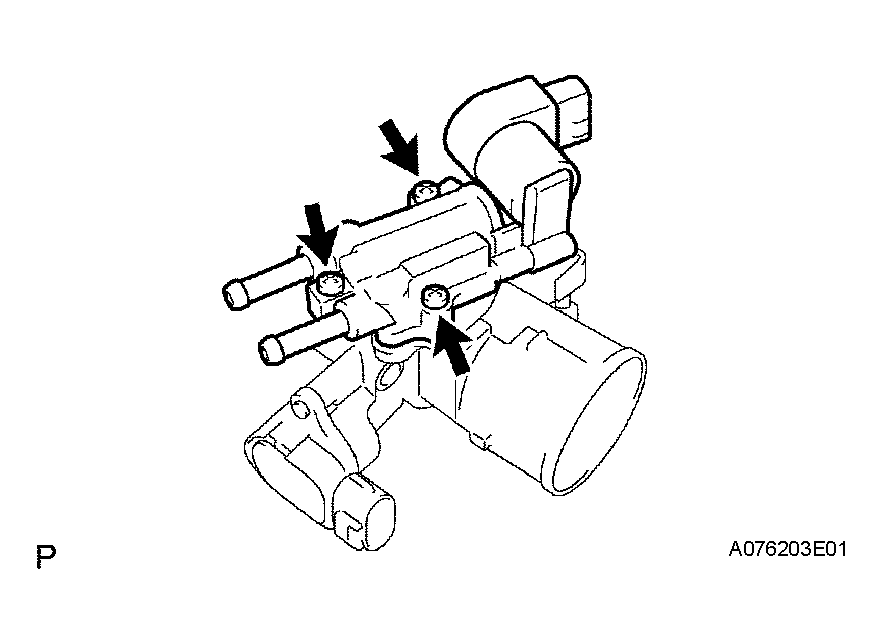

    Fig 1: Installing Idle Air Control Valve
    G04153221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
