Knock Sensor: Installation

  1. INSTALL KNOCK SENSOR
    1. Install the knock sensor with the nut.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    2. Connect the sensor connector.
  2. INSTALL STARTER ASSEMBLY (See  INSTALLATION  )
  3. INSTALL ENGINE UNDER COVER RH (See  INSTALLATION  )
  4. INSTALL ENGINE UNDER COVER LH (See  INSTALLATION  )

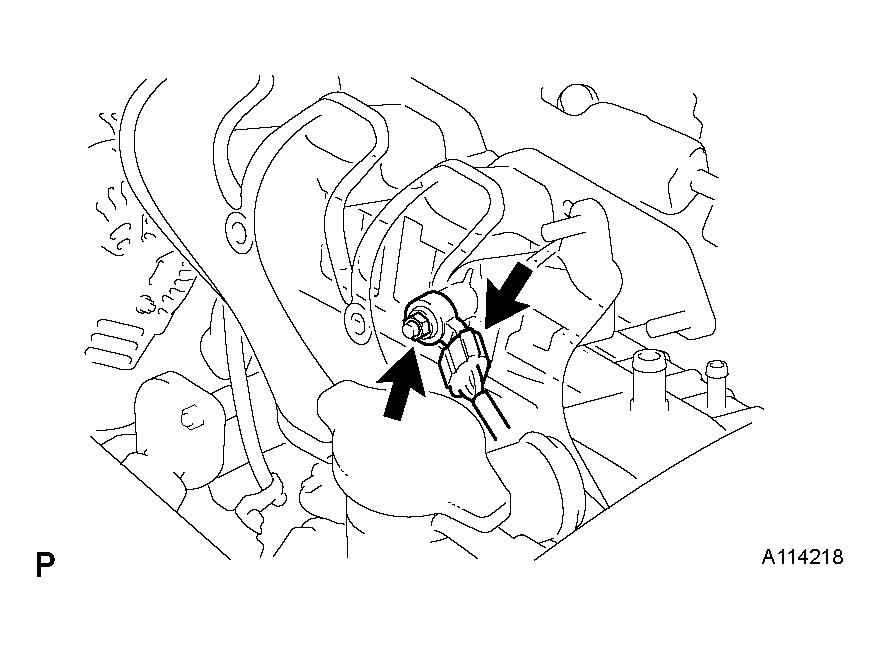

    Fig 1: Installing Knock Sensor
    G04153231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
