Mass Air Flow Meter: Installation

INSTALL MASS AIR FLOW METER
1. Install a new O-ring to the MAF meter.
2. Install the MAF meter with the 2 screws.
3. Connect the MAF connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting the cable from the negative (-) battery terminal.

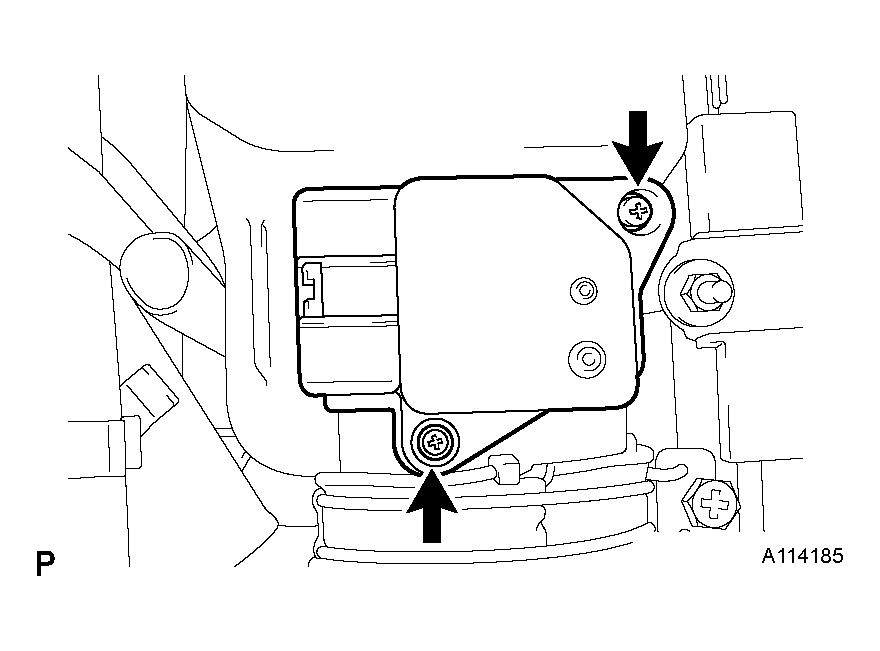

  Fig 1: Installing MAF Meter With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
