Related DTCS

RELATED DTCS CHART

DTC No.	Monitoring Items	See procedure
P043E	Reference orifice clogged (built into canister pump module)
P043F	Reference orifice high-flow (built into canister pump module)
P0441	Purge VSV stuck closed Purge VSV stuck open Purge flow
P0450	Canister pressure sensor (built into canister pump module) voltage abnormal fluctuation
P0451	Canister pressure sensor noise Canister pressure sensor signal becomes fixed/flat
P0452	Canister pressure sensor (built into canister pump module) voltage low
P0453	Canister pressure sensor (built into canister pump module) voltage high
P0455	EVAP gross leak
P0456	EVAP small leak
P2401	Leak detection pump stuck OFF (built into canister pump module)
P2402	Leak detection pump stuck ON (built into canister pump module)
P2419	Vent valve stuck closed (built into canister pump module)
P2420	Vent valve stuck open (vent) (built into canister pump module)
P2610	Soak timer (built into ECM)

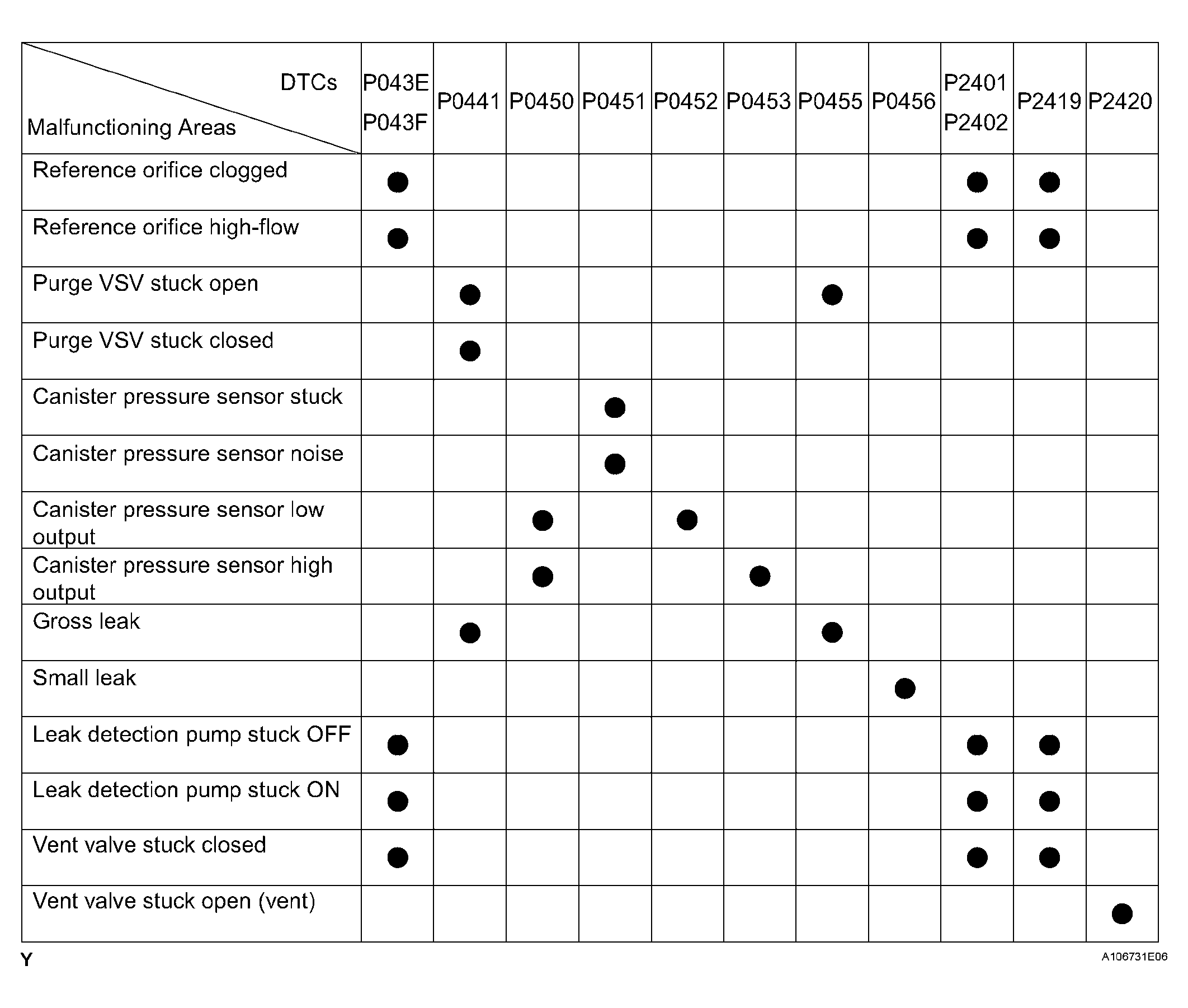

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.

Fig 1: EVAP System - DTCs Reference Chart

NOTE: If the 0.02 inch reference pressure difference between the first and second checks is greater than the specification, the DTCs corresponding to the reference pressure (P043E, P043F, P0441, P0455, P0456, P2401 and P2420) will all be stored.
