xA Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (1NZ-FE)
>>
SFI System
>>
EVAP System
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EVAP System: Wiring Diagram

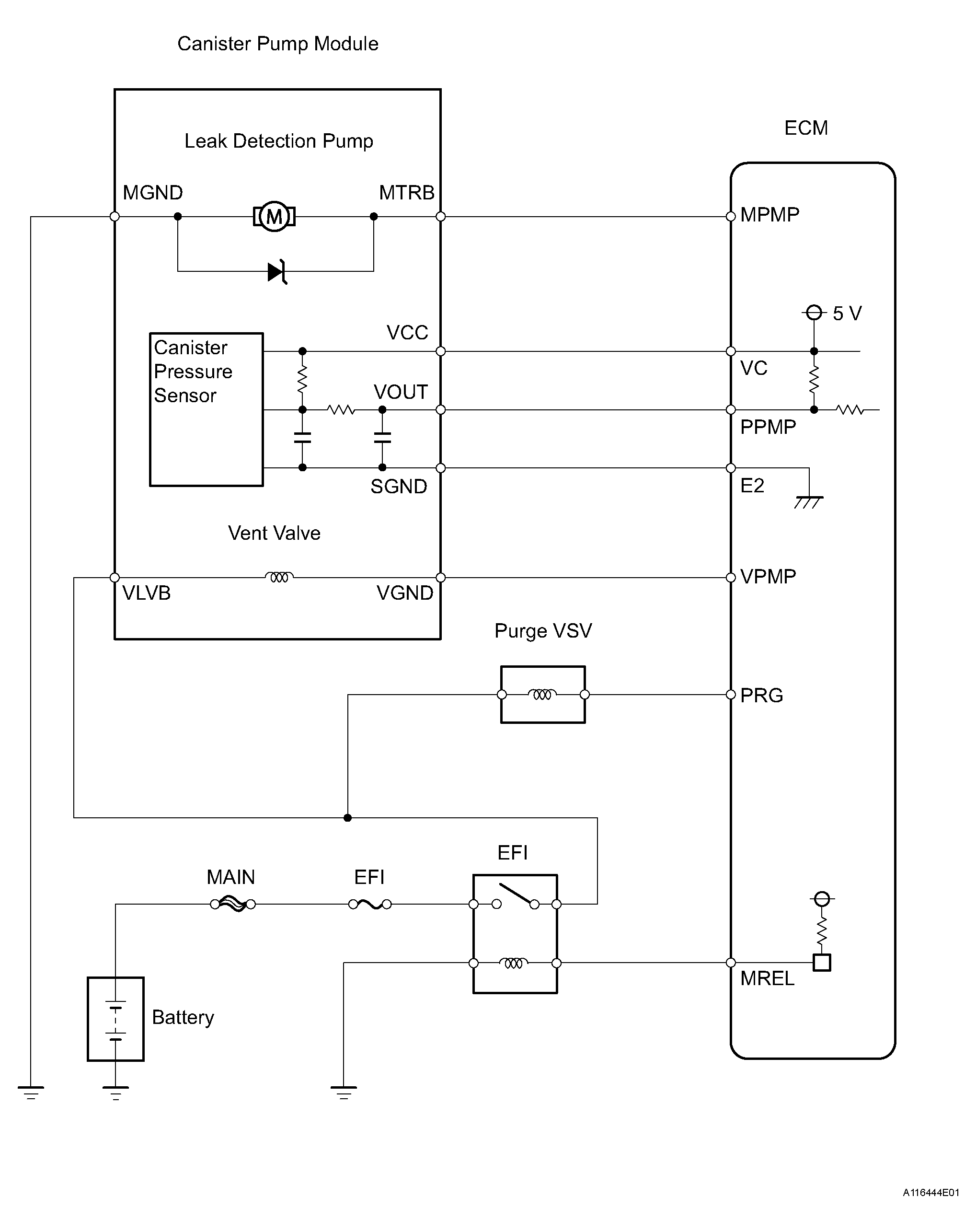

Fig 1: Wiring Diagram - EVAP System
