Freeze Frame Data
- DESCRIPTION
Freeze frame data records the engine conditions (fuel system, calculated load, engine coolant temperature, fuel trim, engine speed, vehicle speed, etc.) when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the airfuel ratio was lean or rich, and other data from the time the malfunction occurred.
HINT:
If it is impossible to replicate the problem even though a DTC is detected, confirm the freeze frame data.

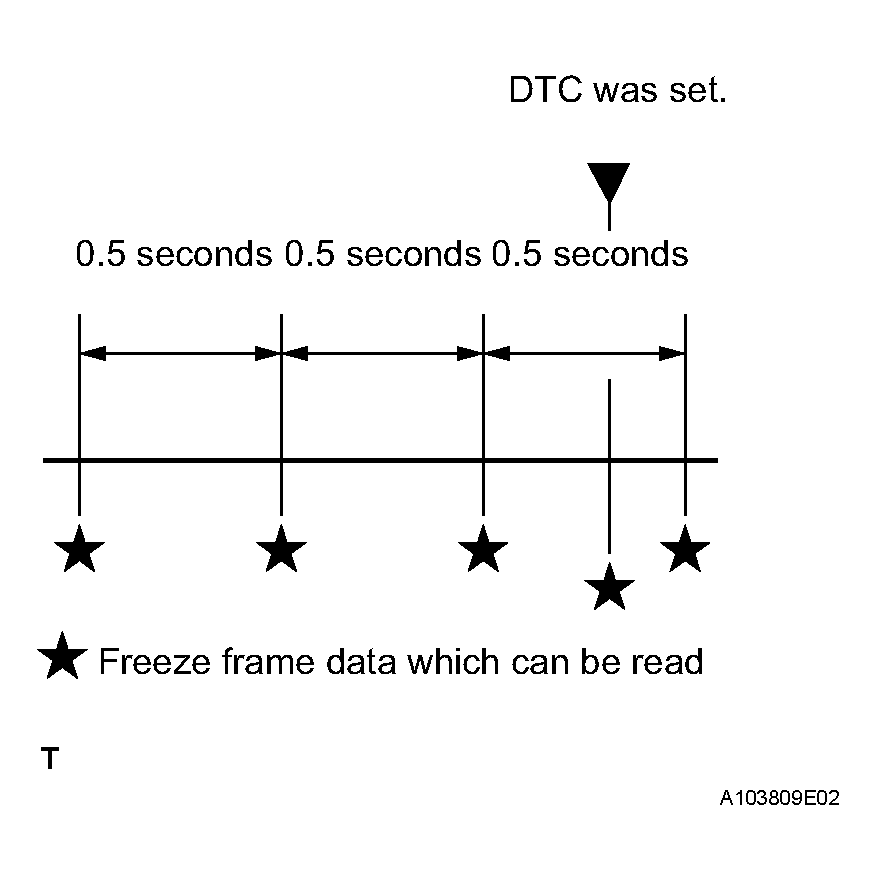

The ECM records engine conditions in the form of freeze frame data every 0.5 seconds. Using the intelligent tester, 5 separate sets of freeze frame data, including the data values at the time when the DTC was set, can be checked.
- 3 data sets before the DTC was set.
- 1 data set when the DTC was set.
- 1 data set after the DTC was set.
These data sets can be used to simulate the condition of the vehicle around the time of the occurrence of the malfunction. The data may assist in identifying of the cause of the malfunction, and in judging whether it was temporary or not.
- LIST OF FREEZE FRAME DATA FREEZE FRAME DATA
LABEL (Intelligent Tester Display) Measure Item/Range Diagnostic Note INJECTOR Injector - IGN ADVANCE Ignition advance - CALC LOAD Calculated load Calculated load by ECM VEHICLE LOAD Vehicle load - MAF Mass air flow volume If value approximately 0.0 g/sec.: - Mass air flow meter power source circuit open or short
- VG circuit open or short
If value 160.0 g/sec. or more:- E2G circuit open
ENGINE SPD Engine speed - VEHICLE SPD Vehicle speed Speed indicated on speedometer COOLANT TEMP Engine coolant temperature If value -40°C, sensor circuit open
If value 140°C or more sensor circuit shortedINTAKE AIR Intake air temperature If value -40°C, sensor circuit open
If value 140°C or more sensor circuit shortedAIR-FUEL PATIO Air-fuel ratio - PURGE DENSITY Learning value of purge density - EVAP PURGE FLOW EVAP purge flow - EVAP PURGE VSV EVAP purge VSV duty ratio - KNOCK CRRT VAL Correction learning value of knocking - KNOCK FB VAL Feedback value of knocking - THROTTLE POS Throttle position Read value with ignition switch ON (Do not start engine) THROTTLE POS Throttle sensor positioning Read value with ignition switch ON (Do not start engine) O2S B1 S1 Heated oxygen sensor output Performing INJ VOL or A/F CONTROL function of ACTIVE TEST enables technician to check output voltage of sensor O2S B1 S2 Heated oxygen sensor output Performing INJ VOL or A/F CONTROL function of ACTIVE TEST enables technician to check output voltage of sensor TOTAL FT #1 Total fuel trim - SHORT FT #1 Short-term fuel trim Short-term fuel compensation used to maintain air-fuel ratio at stoichiometric air-fuel ratio LONG FT #1 Long-term fuel trim Overall fuel compensation carried out in longterm to compensate a continual deviation of short-term fuel trim from central valve FUEL SYS #1 Fuel system status (bank 1) - OL (Open Loop): Has not yet satisfied conditions to go closed loop
- CL (Closed Loop): Using heated oxygen sensor as feedback for fuel control
- OL DRIVE: Open loop due to driving conditions (fuel enrichment)
- OL FAULT: Open loop due to detected system fault
- CL FAULT: Closed loop but heated oxygen sensor, which used for fuel control malfunctioning
O2FT B1 S1 Fuel trim at heated oxygen sensor Same as SHORT FT #1 O2FT B1 S2 Fuel trim at heated oxygen sensor Same as SHORT FT #1 O2 LR B1 S1 Heated oxygen sensor response time (lean to rich) - O2 RL B1 S1 Heated oxygen sensor response time (rich to lean) - CAT TEMP B1 S1 Catalyst temperature - CAT TEMP B1 S2 Catalyst temperature - INI COOL TEMP Initial engine coolant temperature - INI INTAKE TEMP Initial intake air temperature - INJ VOL Injection volume - PS PRESSURE Power steering signal (history) This signal status usually ON until ignition switch turned OFF STARTER SIG Starter signal - PS SW Power steering switch signal - PS SIGNAL Power steering signal (history) - CTP SW Closed throttle position switch - A/C SIGNAL A/C signal - PNP SW [NSW] Neutral position switch signal - ELECT LOAD SIG Electrical load signal - STOP LIGHT SW Stop light switch - BATTERY VOLTAGE Battery voltage - ATM PRESSURE Atmospheric pressure - EVAP (Purge) VSV EVAP purge VSV - FUEL PUMP / SPD Fuel pump/speed status - VVT CTRL B1 VVT control status (bank 1) - VACUUM PUMP KEY-OFF EVAP SYSTEM PUMP STATUS - EVAP VENT VAL Key-off EVAP system vent valve status - FAN MOTOR Electric fan motor - TC/TE1 TC and TE1 terminals of DLC3 - FC IDL Idle fuel cut ON: when throttle valve fully closed and engine speed over 1,500 rpm FC TAU FC TAU Fuel cut being performed under very light load to prevent engine combustion from becoming incomplete VVTL AIM ANGL#1 VVT aim angle (bank 1) - VVT CHNG ANGL#1 VVT change angle (bank 1) - VVT OCV DUTY B1 VVT OCV operation duty (bank 1) - IGNITION Ignition - CYL #1 Cylinder #1 misfire rate Displayed only when idling CYL #2 Cylinder #2 misfire rate Displayed only when idling CYL #3 Cylinder #3 misfire rate Displayed only when idling CYL #4 Cylinder #4 misfire rate Displayed only when idling CYL ALL All cylinder misfire rate Displayed only when idling MISFIRE RPM Misfire RPM - MISFIRE LOAD Misfired load - MISFIRE MARGIN Misfire monitoring - ENG RUN TIME Accumulated engine running time - TIME DTC CLEAR Cumulative time after DTC cleared - DIST DTC CLEAR Accumulated distance after DTC cleared - WU CYC DTC CLEAR Warm-up cycle after DTC cleared -
