Fuel Pump Control Circuit: Wiring Diagram

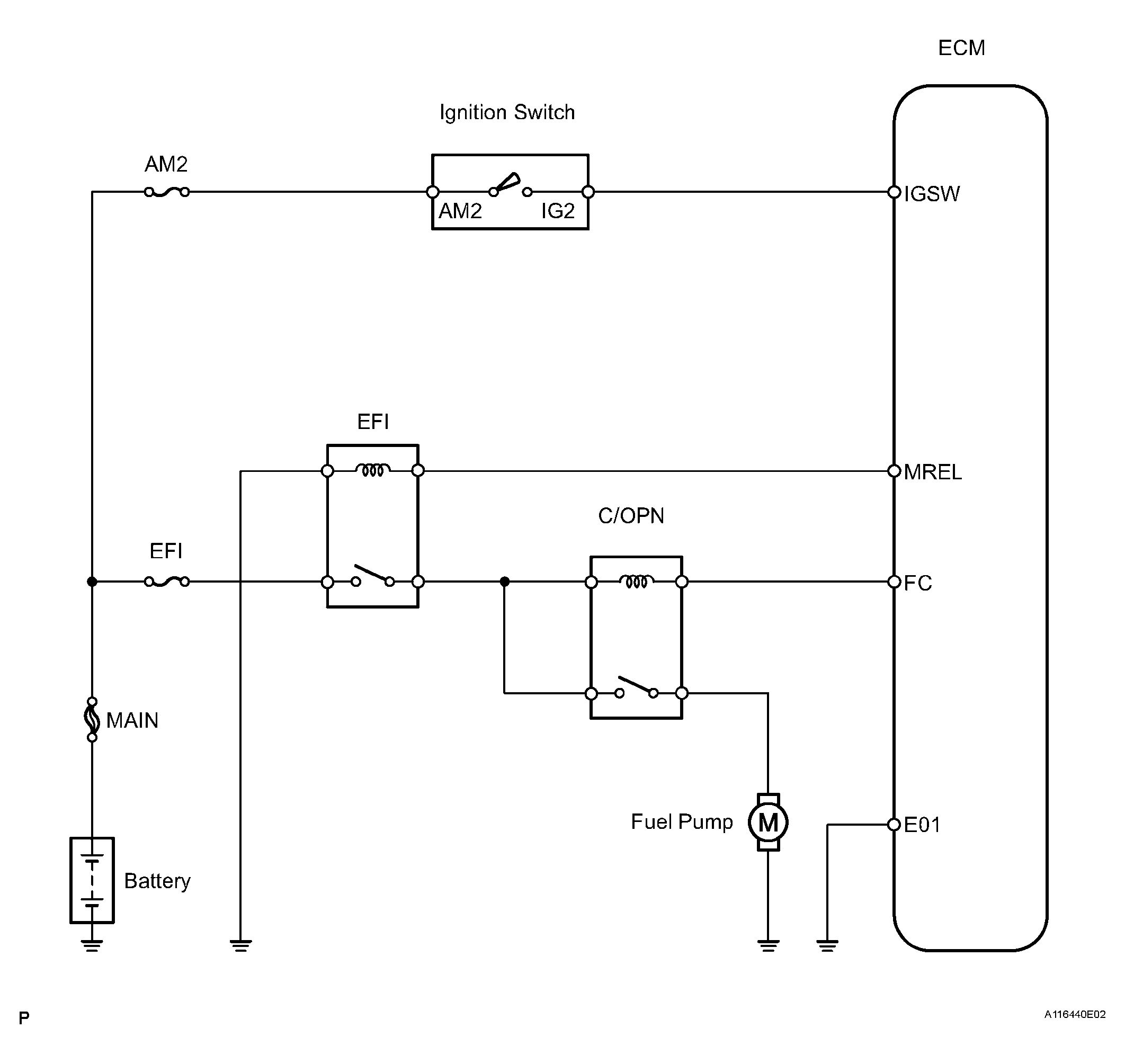

Fig 1: Wiring Diagram - Fuel Pump Control
G04153155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
