Throttle Position Sensor: Installation

INSTALL THROTTLE POSITION SENSOR
1. Install the sensor with the 2 screws.
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
INSTALL THROTTLE BODY ASSEMBLY
1. Install the throttle body (see INSPECTION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

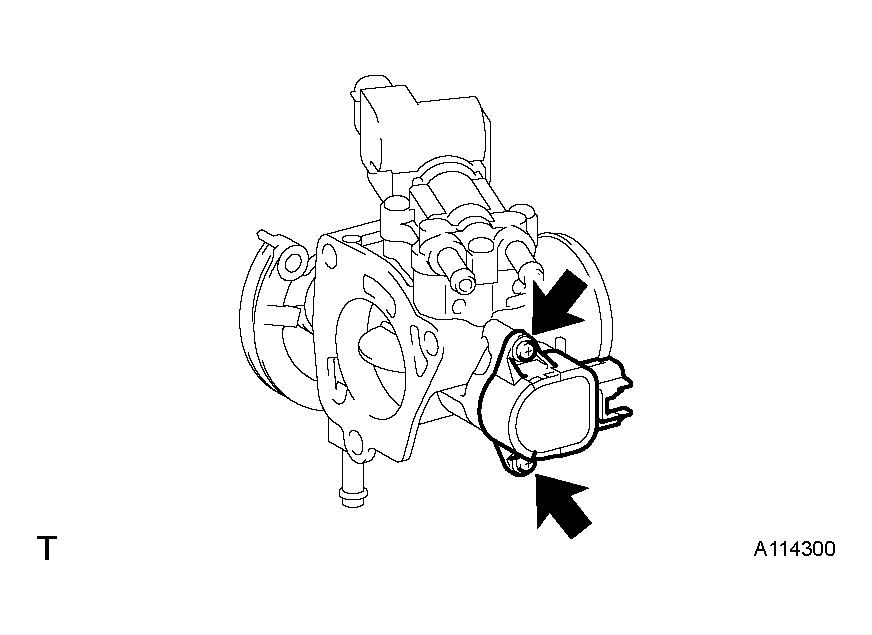

  Fig 1: Installing Sensor With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
