Throttle Position Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE THROTTLE BODY ASSEMBLY
    1. Remove the throttle body (see REMOVAL  ).
  3. REMOVE THROTTLE POSITION SENSOR
    1. Remove the 2 screws and sensor.

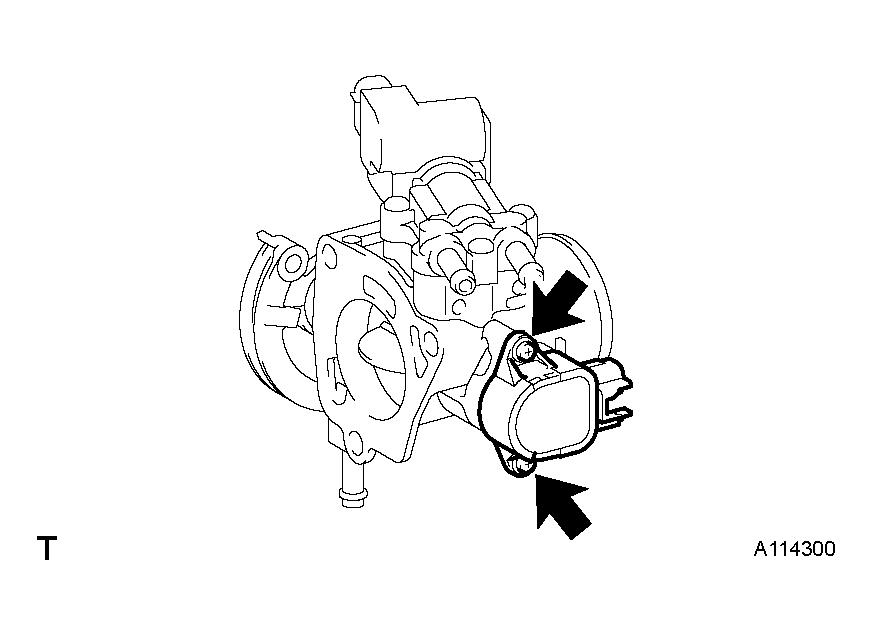

      Fig 1: Removing Throttle Position Sensor
      G04153224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
