Power Window Master Switch: Inspection

  1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Measure the resistance between each terminal of the connector when the switch is operated.

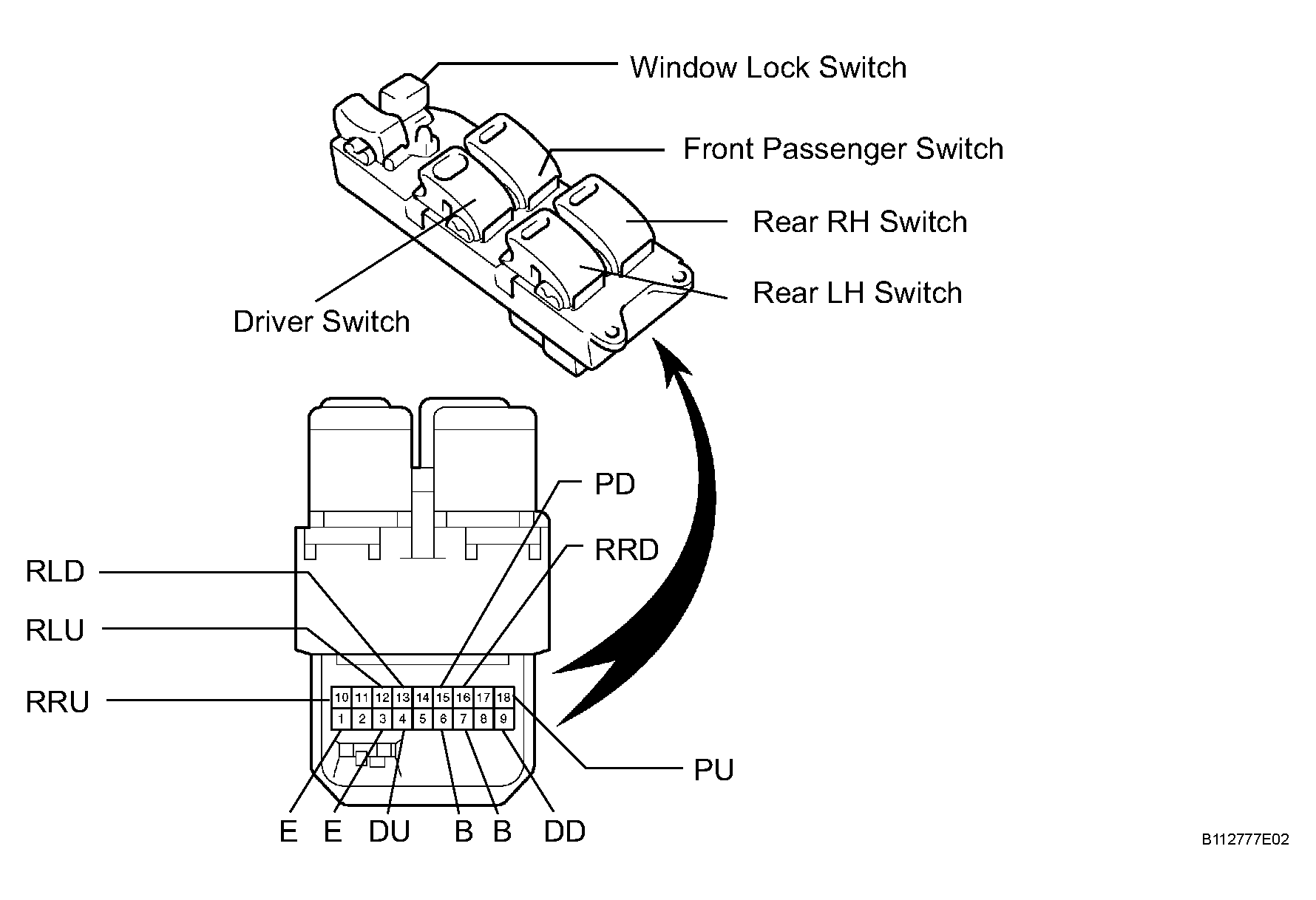

      Fig 1: Identifying Power Window Regulator Master Switch Assembly
      G04158990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard resistance: Driver switch

    RESISTANCE SPECIFICATION

    Window Lock Switch Condition Power Window Switch Condition Tester Connection Specified Condition
    Always
    (ON / OFF)    		 UP 1 (E) - 9 (DD)
    3 (E) - 9 (DD)
    4 (DU) - 6 (B)
    4 (DU) - 7 (B)    		 Below 1 Ω
    Always
    (ON / OFF)    		 OFF 1 (E) - 4 (DU)
    3 (E) - 4 (DU)
    1 (E) - 9 (DD)
    3 (E) - 9 (DD)    		 Below 1 Ω
    Always
    (ON / OFF)    		 DOWN 1 (E) - 4 (DU)
    3 (E) - 4 (DU)
    6 (B) - 9 (DD)
    7 (B) - 9 (DD)    		 Below 1 Ω
    Always
    (ON / OFF)    		 AUTO DOWN 1 (E) - 4 (DU)
    3 (E) - 4 (DU)
    6 (B) - 9 (DD)
    7 (B) - 9 (DD)    		 Below 1 Ω

    Front passenger switch

    RESISTANCE SPECIFICATION

    Window Lock Switch Condition Power Window Switch Condition Tester Connection Specified Condition
    OFF UP 1 (E) - 15 (PD)
    3 (E) - 15 (PD)
    6 (B) - 18 (PU)
    7 (B) - 18 (PU)    		 Below 1 Ω
    OFF OFF 1 (E) - 15 (PD)
    3 (E) - 15 (PD)
    1 (E) - 18 (PU)
    3 (E) - 18 (PU)    		 Below 1 Ω
    OFF DOWN 1 (E) - 18 (PU)
    3 (E) - 18 (PU)
    6 (B) - 15 (PD)
    7 (B) - 15 (PD)    		 Below 1 Ω
    ON UP 6 (B) - 18 (PU)
    7 (B) - 18 (PU)    		 Below 1 Ω
    ON OFF 15 (PD) - 18 (PU) Below 1 Ω
    ON DOWN 6 (B) - 15 (PD)
    7 (B) - 15 (PD)    		 Below 1 Ω

    Rear LH switch

    RESISTANCE SPECIFICATION

    Window Lock Switch Condition Power Window Switch Condition Tester Connection Specified Condition
    OFF UP 1 (E) - 13 (RLD)
    3 (E) - 13 (RLD)
    6 (B) - 12 (RLU)
    7 (B) - 12 (RLU)    		 Below 1 Ω
    OFF OFF 1 (E) - 12 (RLU)
    3 (E) - 12 (RLU)
    1 (E) - 13 (RLD)
    3 (E) - 13 (RLD)    		 Below 1 Ω
    OFF DOWN 1 (E) - 12 (RLU)
    3 (E) - 12 (RLU)
    6 (B) - 13 (RLD)
    7 (B) - 13 (RLD)    		 Below 1 Ω
    ON UP 6 (B) - 12 (RLU)
    7 (B) - 12 (RLU)    		 Below 1 Ω
    ON OFF 12 (RLU) - 13 (RLD) Below 1 Ω
    ON DOWN 6 (B) - 13 (RLD)
    7 (B) - 13 (RLD)    		 Below 1 Ω

    Rear RH switch

    RESISTANCE SPECIFICATION

    Window Lock Switch Condition Power Window Switch Condition Tester Connection Specified Condition
    OFF UP 1 (E) - 16 (RRD)
    3 (E) - 16 (RRD)
    6 (B) - 10 (RRU)
    7 (B) - 10 (RRU)    		 Below 1 Ω
    OFF OFF 1 (E) - 10 (RRU)
    3 (E) - 10 (RRU)
    1 (E) - 16 (RRD)
    3 (E) - 16 (RRD)    		 Below 1 Ω
    OFF DOWN 1 (E) - 10 (RRU)
    3 (E) - 10 (RRU)
    6 (B) - 16 (RRD)
    7 (B) - 16 (RRD)    		 Below 1 Ω
    ON UP 6 (B) - 10 (RRU)
    7 (B) - 10 (RRU)    		 Below 1 Ω
    ON OFF 10 (RRU) - 16 (RRD) Below 1 Ω
    ON DOWN 6 (B) - 16 (RRD)
    7 (B) - 16 (RRD)    		 Below 1 Ω

    If the result is not as specified, replace the master switch assembly.

  2. Apply battery voltage to the master switch terminals and check the AUTO light.

    OK : GO TO NEXT STEP

    MEASUREMENT CONDITION SPECIFICATION

    Measurement Condition Specified Condition
    Battery positive (+) --> Terminal 6 (B)
    Battery negative (-) --> Terminal 3 (E)    		 AUTO light illuminates

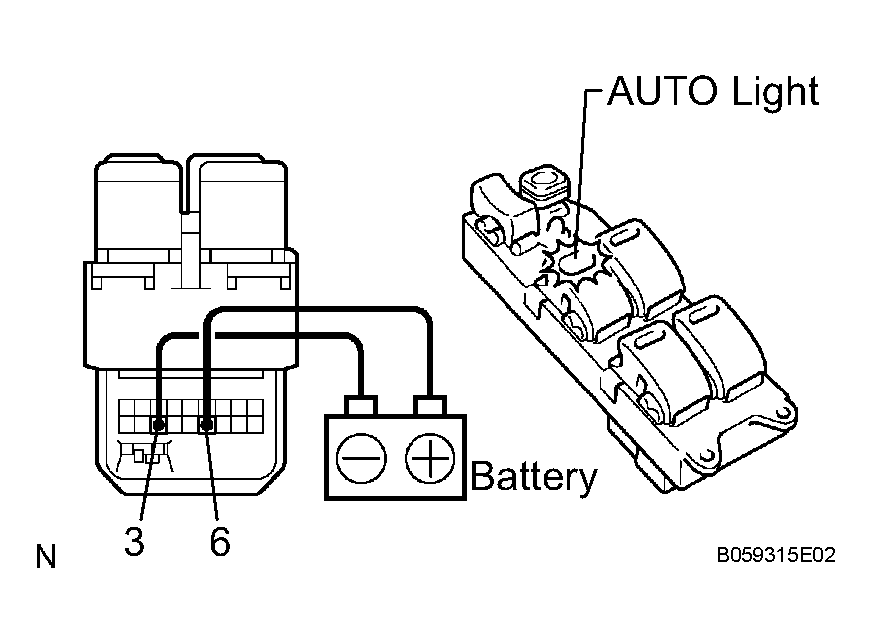

    Fig 2: Applying Battery Voltage To Master Switch Terminals
    G04158991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the master switch assembly
