Camshaft Timing Oil Control Valve Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FAN BELT ADJUSTING BAR
1. Remove the bolt, nut and adjusting bar.

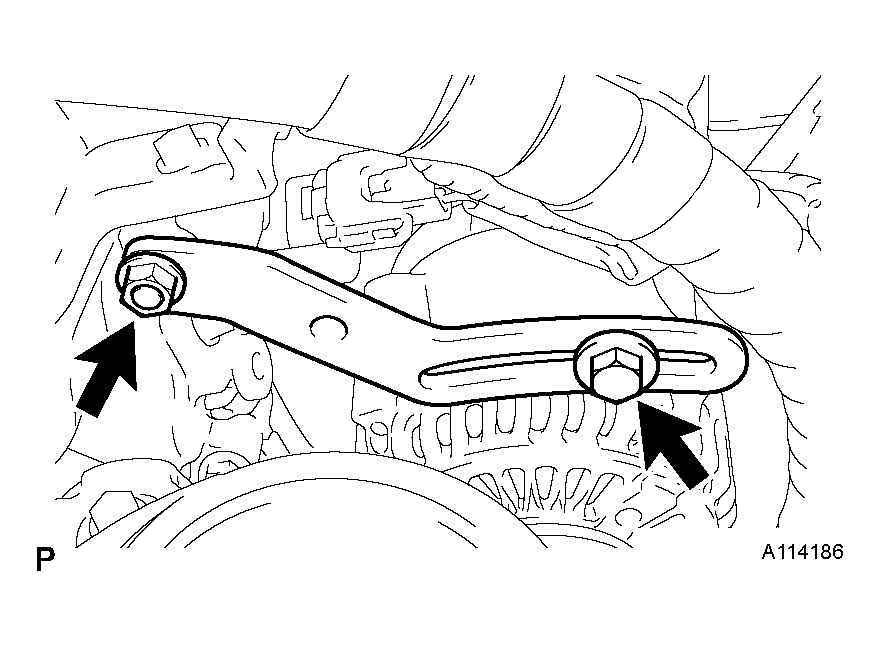

  Fig 1: Removing Bolt, Nut And Adjusting Bar
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.
3. Remove the O-ring from the oil control valve.

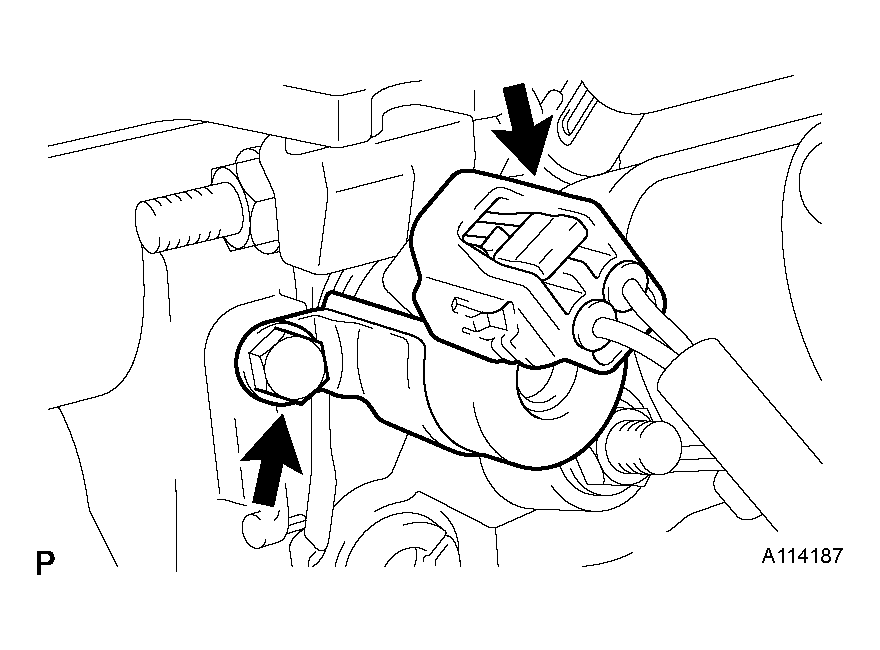

  Fig 2: Removing Bolt And Oil Control Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
