On-Vehicle Inspection

  1. REMOVE POWER RELAY (Marking: POWER)
    1. Remove the power relay from the instrument panel junction block.
  2. INSPECT POWER RELAY
    1. Measure the resistance of the relay.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (When battery voltage is applied to terminals 1 and 2)

      If the result is not as specified, replace the relay.

  3. INSTALL POWER RELAY

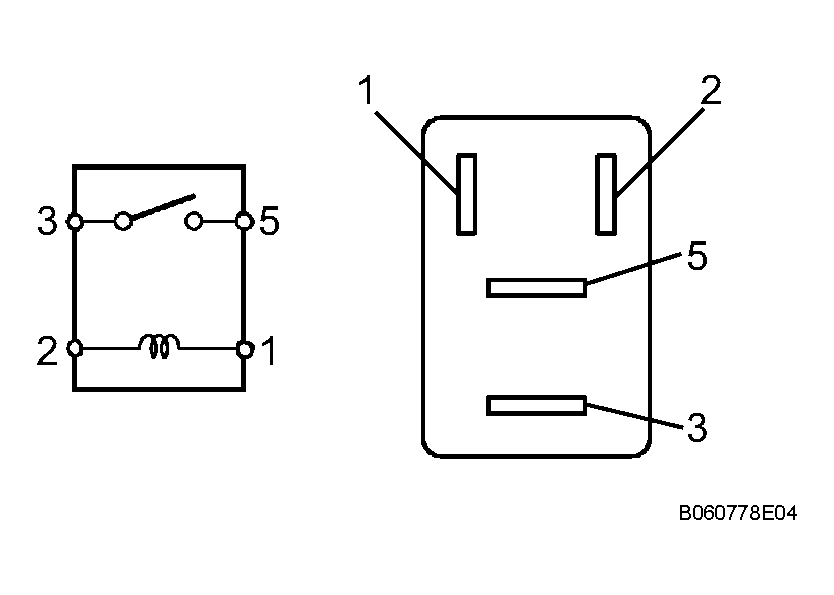

    Fig 1: Inspecting Power Relay
    G04229456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
