Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

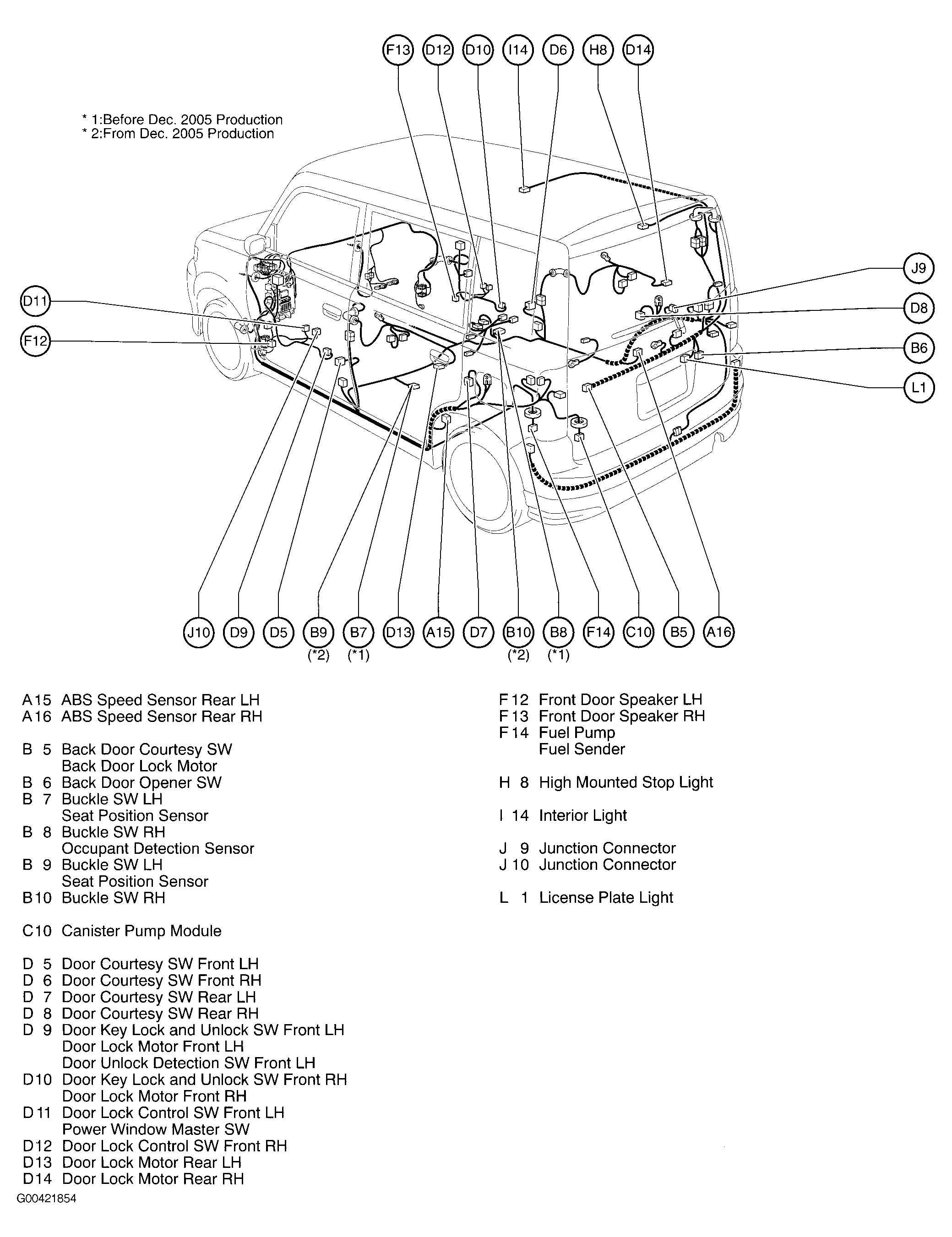

| Canister Pump Module | Left "D" pillar. See Figure. |

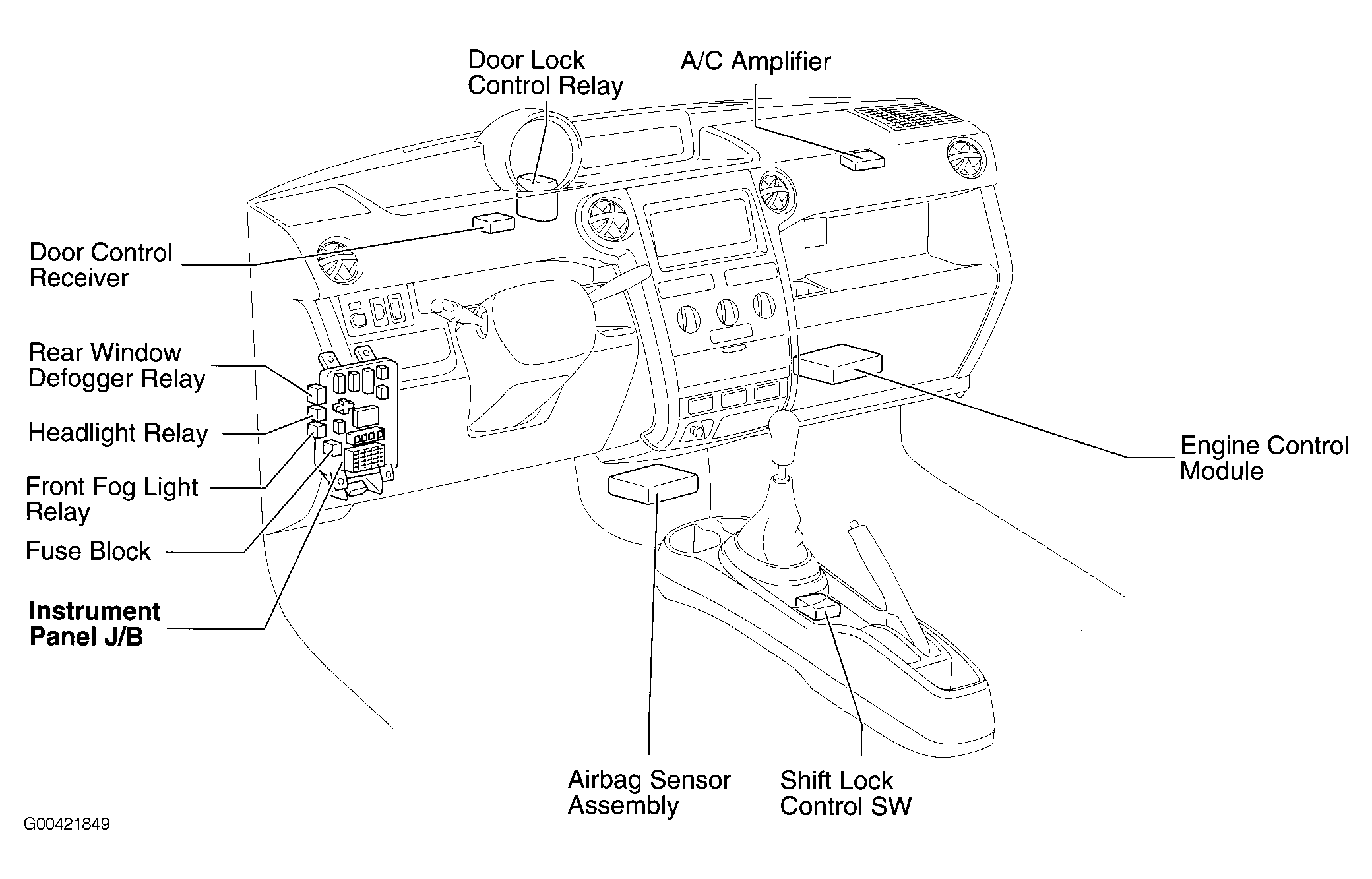

| Engine Control Module | Behind lower right side of dash. See Figure. |
| Occupant Classification ECU | Under front passenger's seat. See Figure. |
| PTC Amplifier | Behind upper right side of dash. See Figure. |
| Skid Control ECU (W/ Actuator) | Left side of engine compartment. See Figure. |
