Camshaft Timing Oil Control Valve Assembly: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Apply a light coat of engine oil to a new O-ring.
2. Install the O-ring to the oil control valve.
3. Install the oil control valve with the bolt.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
4. Connect the oil control valve connector.

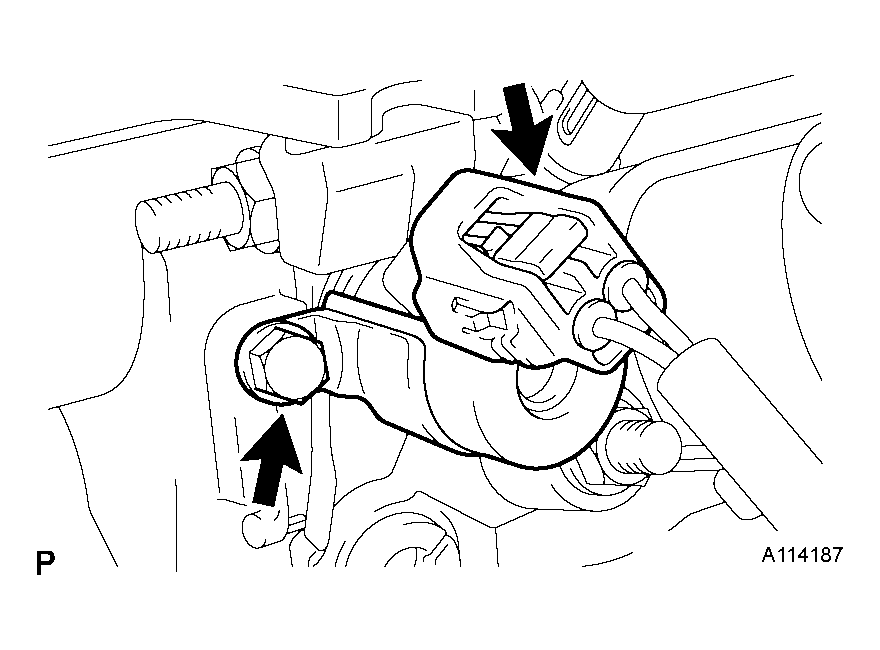

  Fig 1: Connecting Oil Control Valve Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FAN BELT ADJUSTING BAR
1. Temporarily install the adjusting bar with the bolt and nut.
2. Adjust the drive belt tension (see INSTALLATION ).

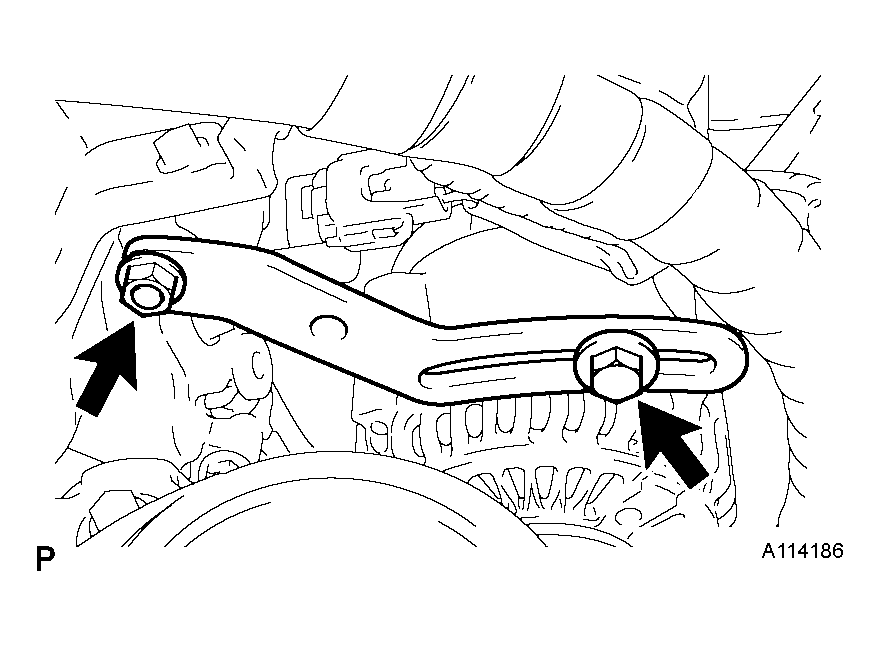

  Fig 2: Installing Fan Belt Adjusting Bar
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
