Idle Air Control Valve: Installation

  1. INSTALL IDLE AIR CONTROL VALVE ASSEMBLY
    1. Install a new gasket and the valve with the 3 screws.

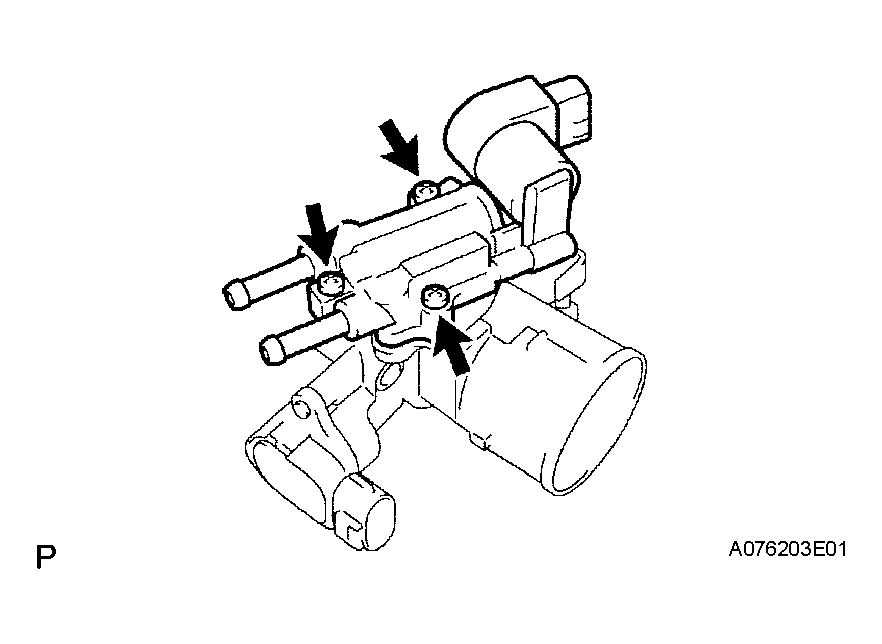

      Fig 1: Installing Gasket And Valve
      G04225761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 3.4 N*m (35 kgf*cm, 30 in.*lbf)

  2. INSTALL THROTTLE BODY ASSEMBLY
    1. Install the throttle body (see INSTALLATION  ).
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
