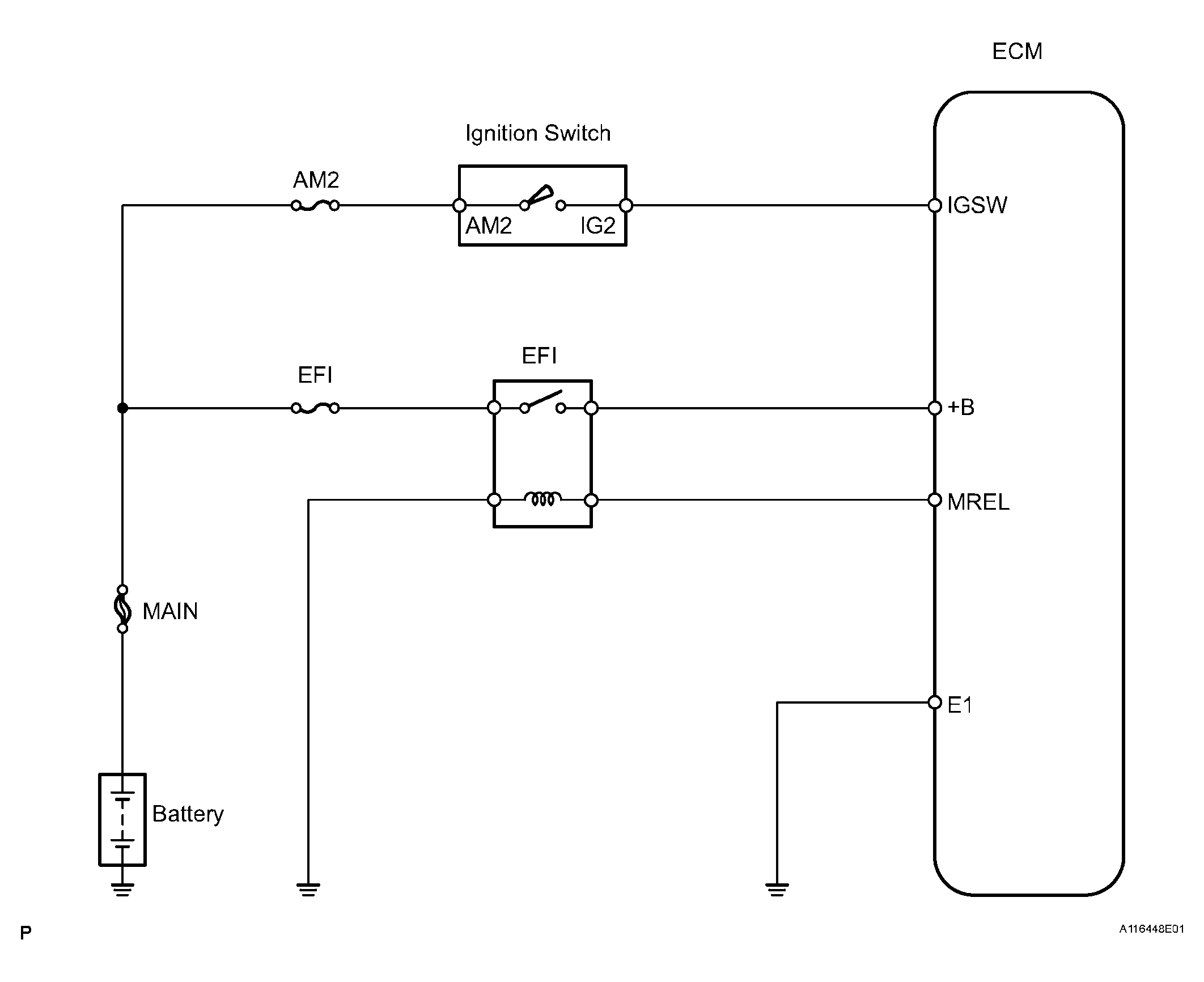

ECM Power Source Circuit: Wiring Diagram
Fig 1: Identifying Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
