Throttle Position Sensor: Installation

  1. INSTALL THROTTLE POSITION SENSOR
    1. Install the sensor with the 2 screws.

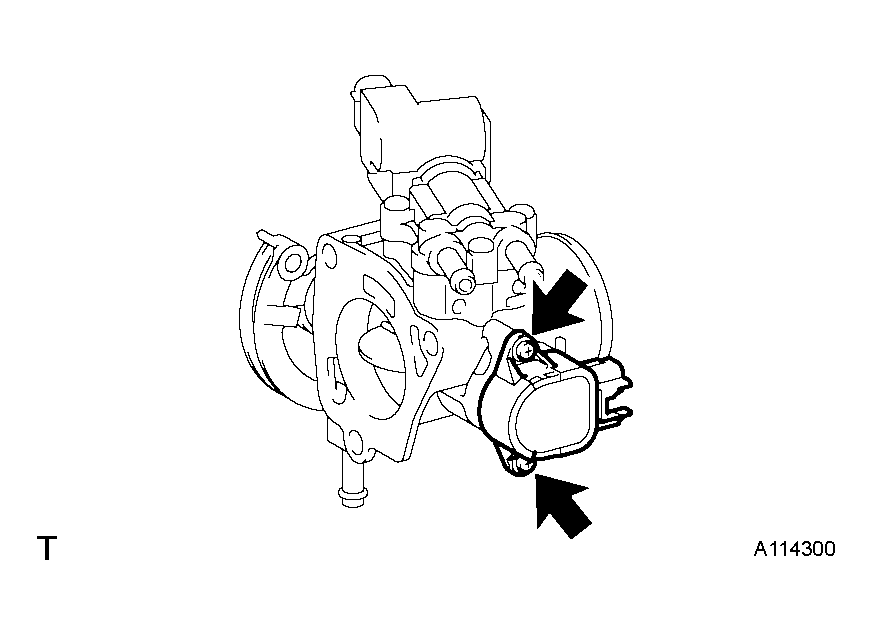

      Fig 1: Installing Sensor With Screws
      G04225766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

  2. INSTALL THROTTLE BODY ASSEMBLY
    1. Install the throttle body (see INSTALLATION  ).
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
