Supplemental Restraint System: SST

SUPPLEMENTAL RESTRAINT SYSTEM SST CHART

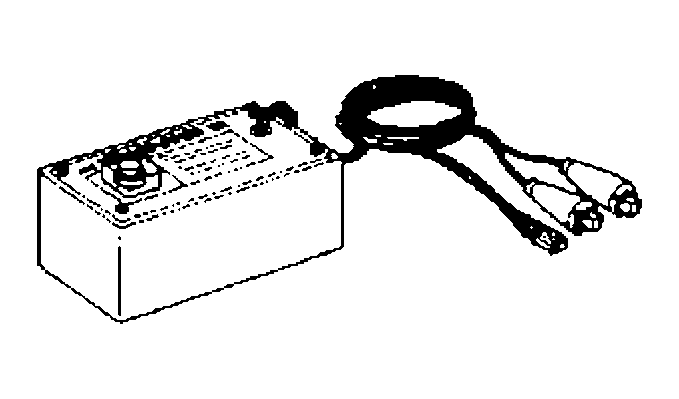

G04225298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00700 SRS Airbag Deployment Tool -

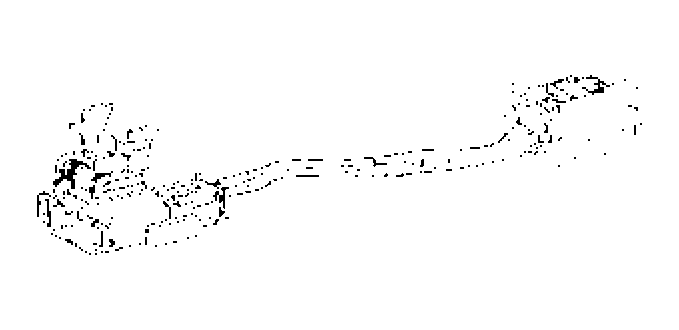

G04225299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00780 Airbag Deployment Wire Sub-harness No.6 -

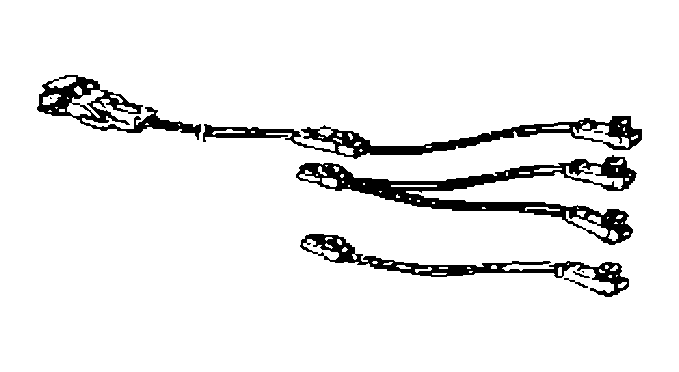

G04225300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00802 Airbag Deployment Wire Sub-Harness No. 8 -

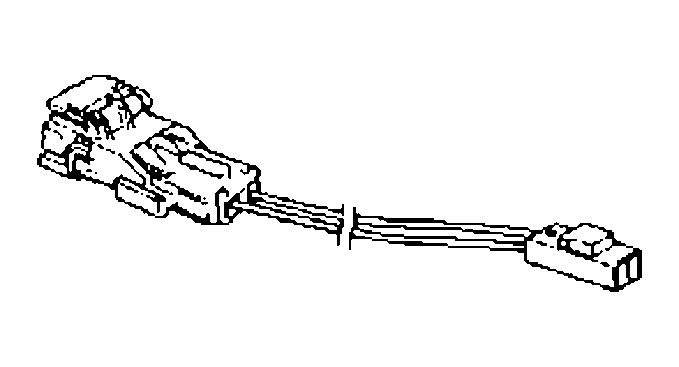

G04225301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-10801) Wire A -

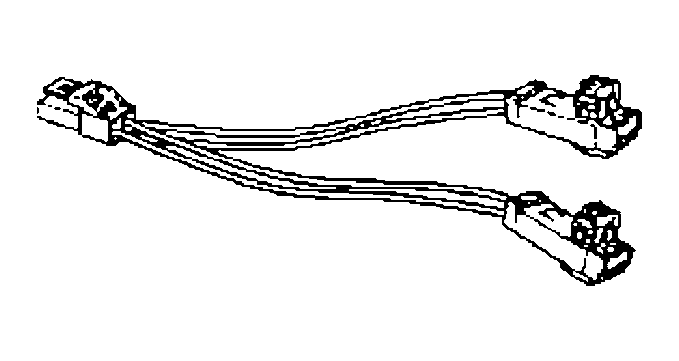

G04225302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-30801) Wire C -

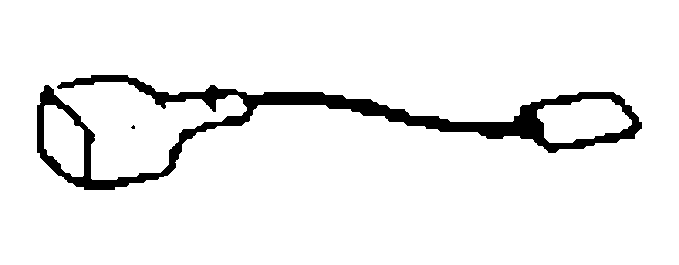

G04225303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18030 Tacho-pulse Pickup Wire No.2 -

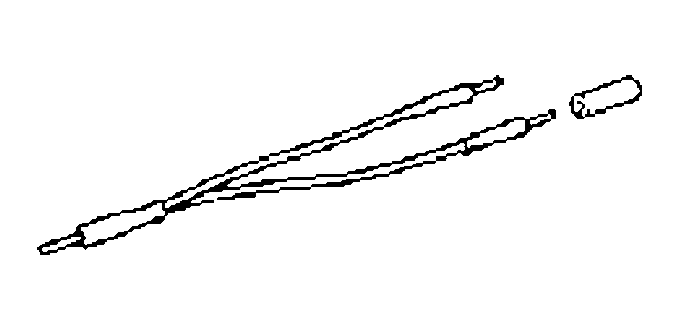

G04225304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18040 Diagnosis Check Wire No.2 -
