Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustrations.
  1. Vehicle Identification Number Plate
  2. Certification Label

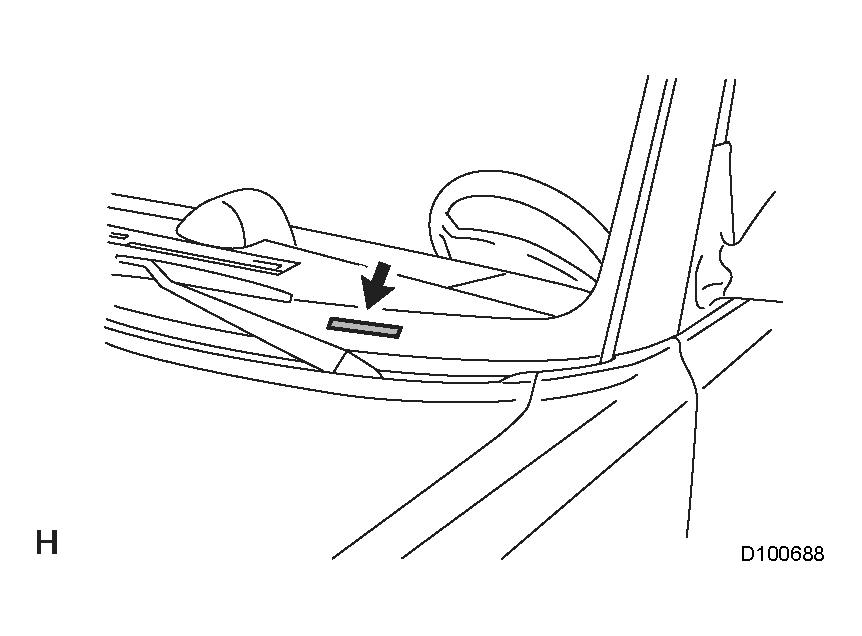

    Fig 1: Identifying Vehicle Identification Number Plate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

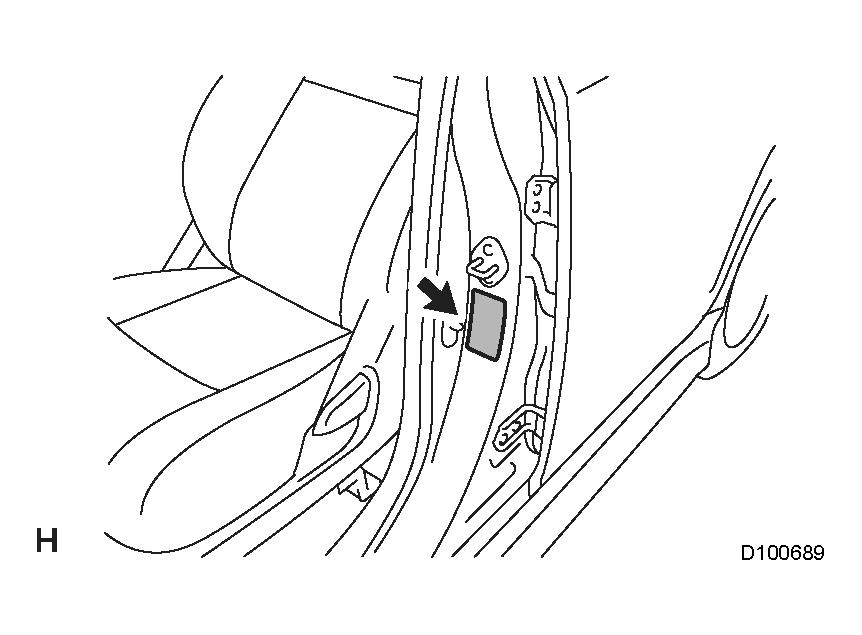

    Fig 2: Identifying Certification Label
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustration.
  1. Engine Serial Number
  2. Transaxle Serial Number

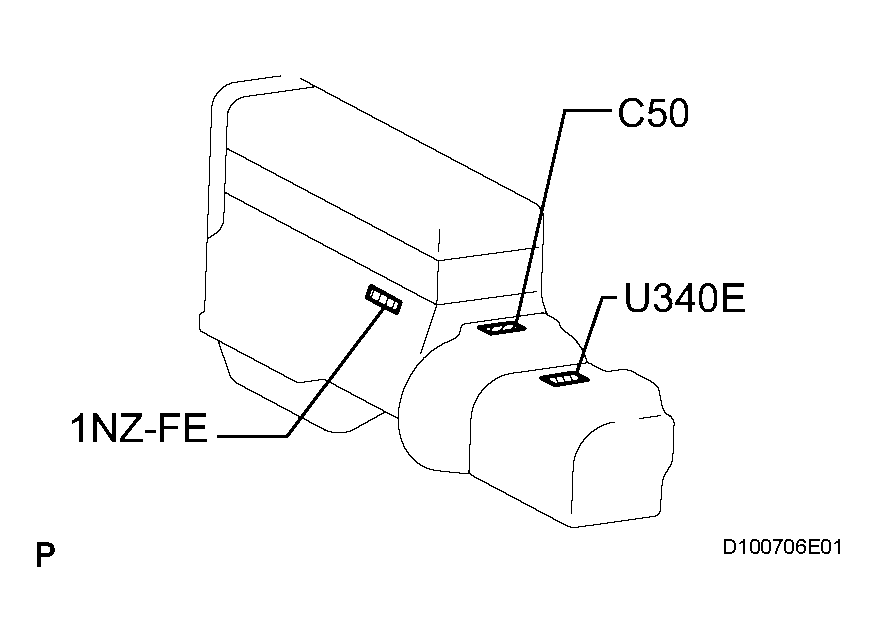

    Fig 3: Identifying Engine Serial Number And Transaxle Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
