Camshaft Position Sensor: Installation

  1. INSTALL CAMSHAFT POSITION SENSOR
    1. Install the sensor with the bolt.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

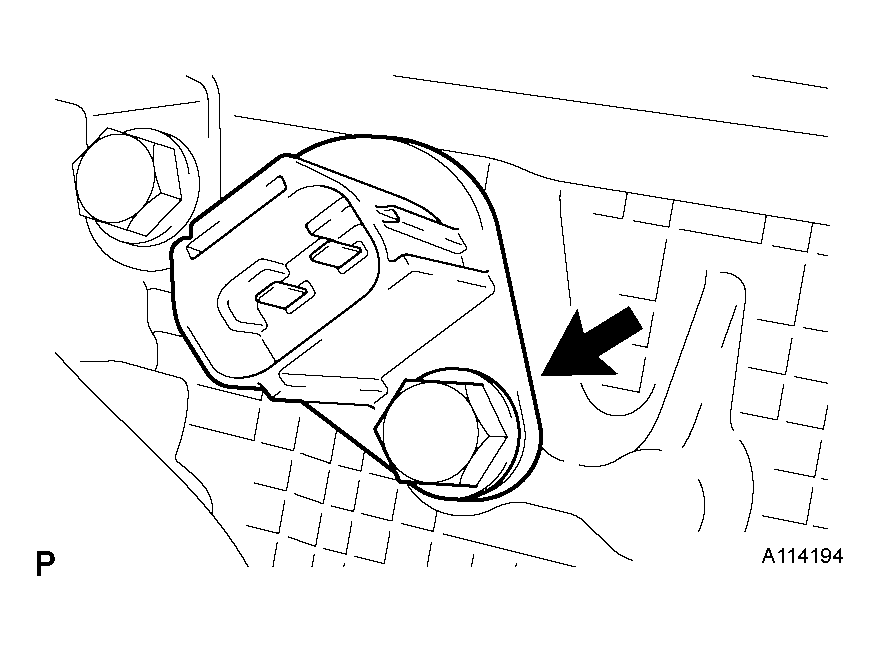

      Fig 1: Installing Sensor With Bolt
      G04225726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the sensor connector.

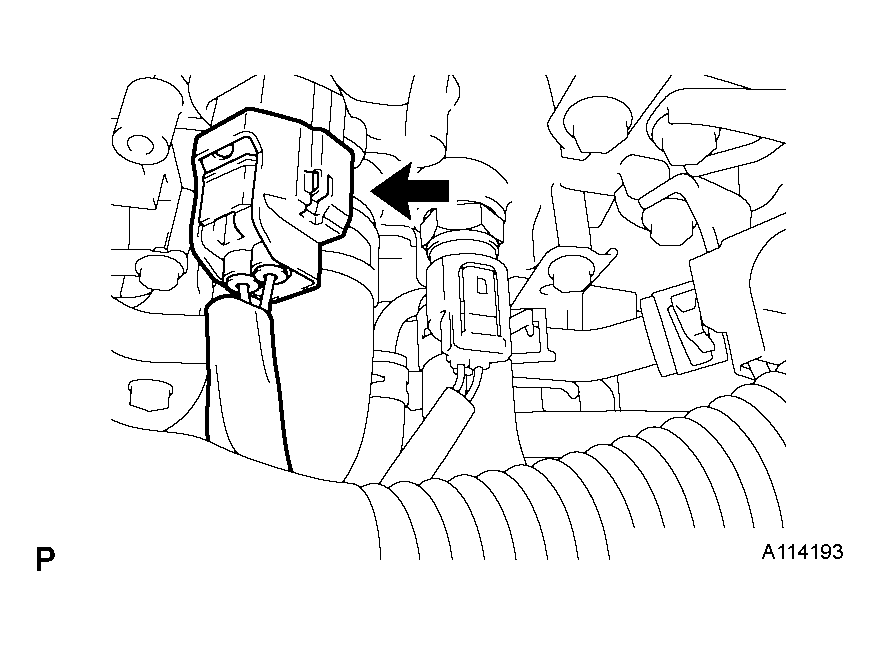

      Fig 2: Connecting Sensor Connector
      G04225727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT ENGINE WIRE
    1. Connect the 2 clamps of the engine wire.

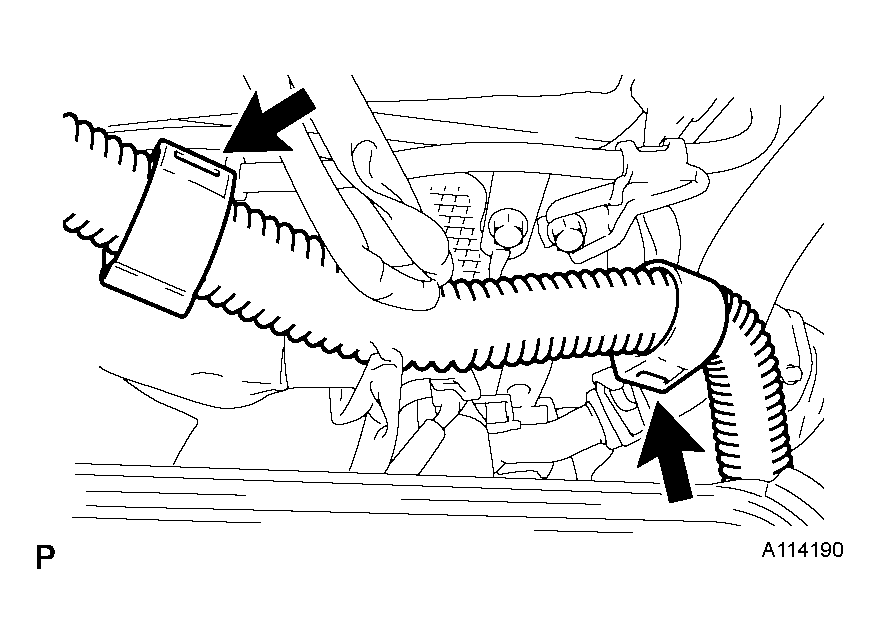

      Fig 3: Connecting Clamps Of Engine Wire
      G04225728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AIR CLEANER ASSEMBLY (See  INSTALLATION   )
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
