Crankshaft Position Sensor: Installation

  1. INSTALL CRANKSHAFT POSITION SENSOR
    1. Install the sensor with the bolt.

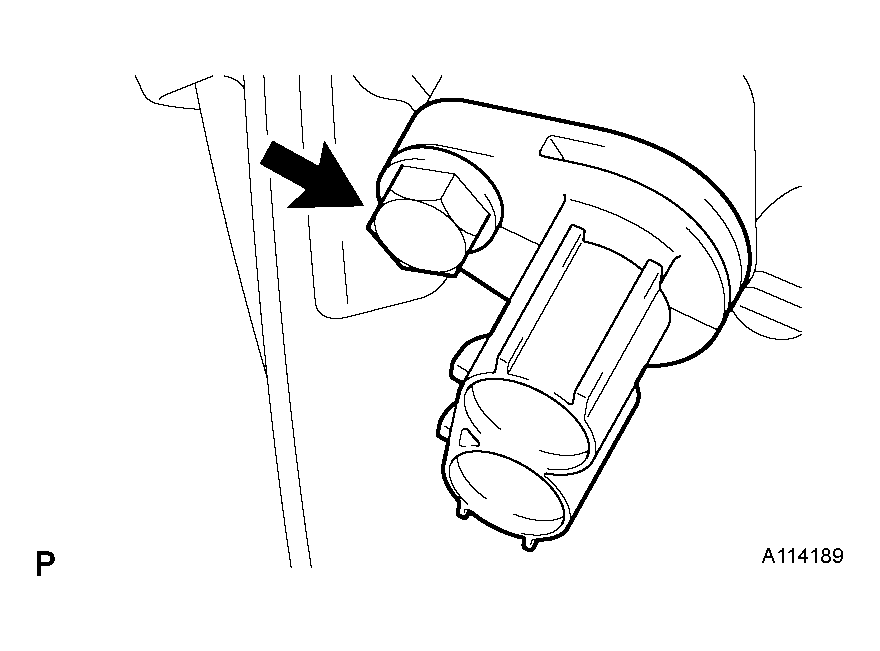

      Fig 1: Installing Sensor With Bolt
      G04225733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    2. Connect the sensor connector.
  2. INSTALL ENGINE UNDER COVER RH
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
