Engine Coolant Temperature Sensor: Inspection

INSPECT ENGINE COOLANT TEMPERATURE SENSOR

Measure the resistance of the sensor.

Standard resistance

TESTER CONNECTION - SPECIFIED CONDITIONS

Tester Connection	Condition	Specified Condition
1 - 2	20°C (68°F)	2.29 to 2.60 kΩ
1 - 2	80°C (176°F)	0.301 to 0.327 kΩ

NOTE: If checking the engine coolant temperature sensor in water, be careful not to allow water to intrude the terminals. After checking, dry the sensor.

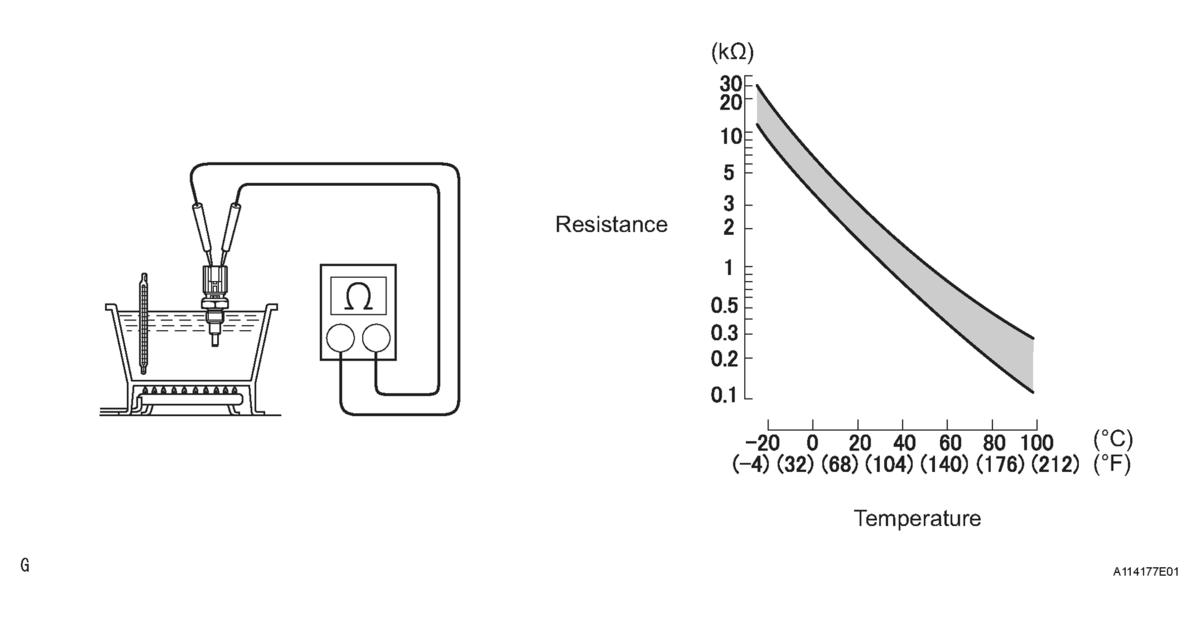

Fig 1: Measuring Resistance Of Sensor

If the result is not as specified, replace the engine coolant temperature sensor.
