Idle Air Control Valve: Components

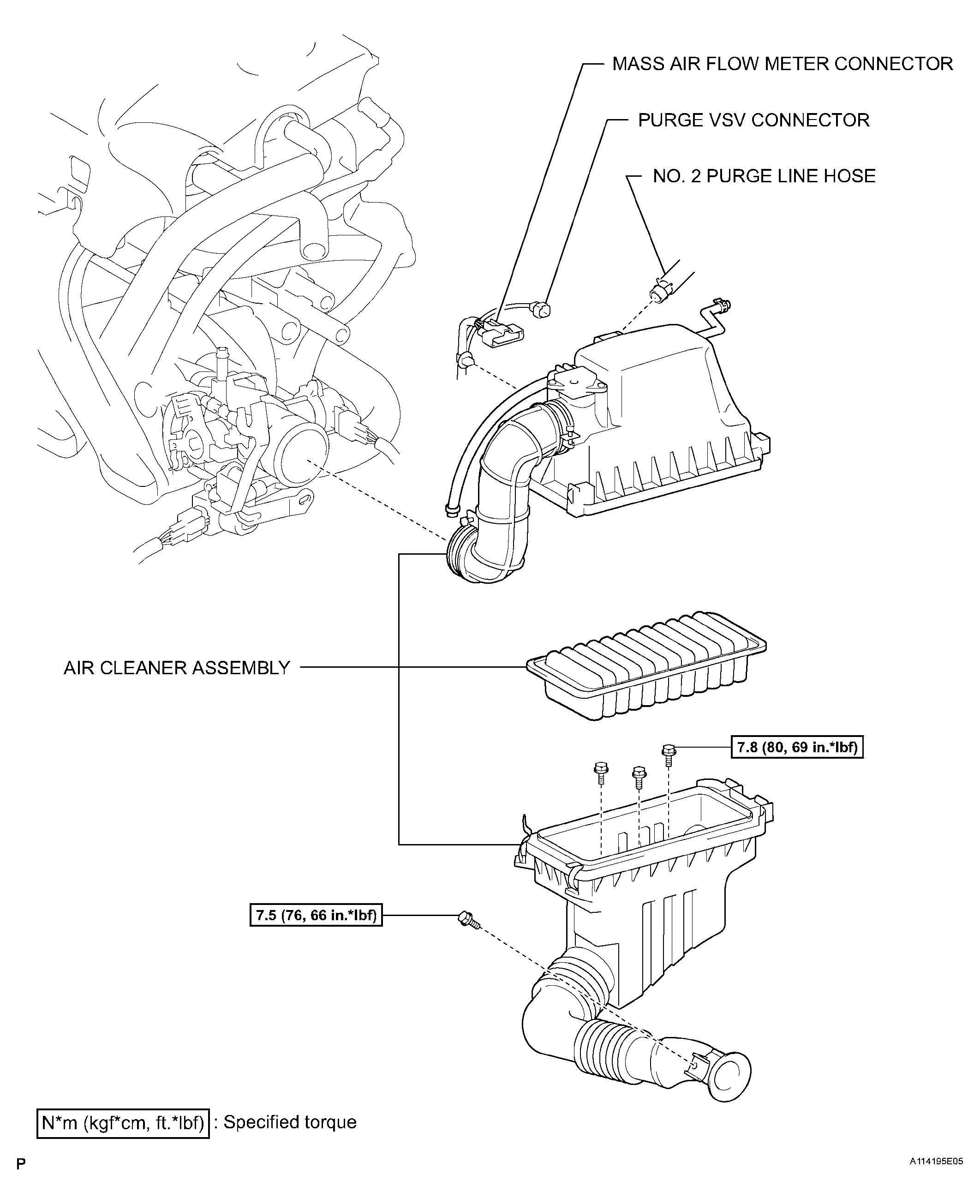

Fig 1: Identifying Idle Air Control Valve Components (1 Of 2)
G04225757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

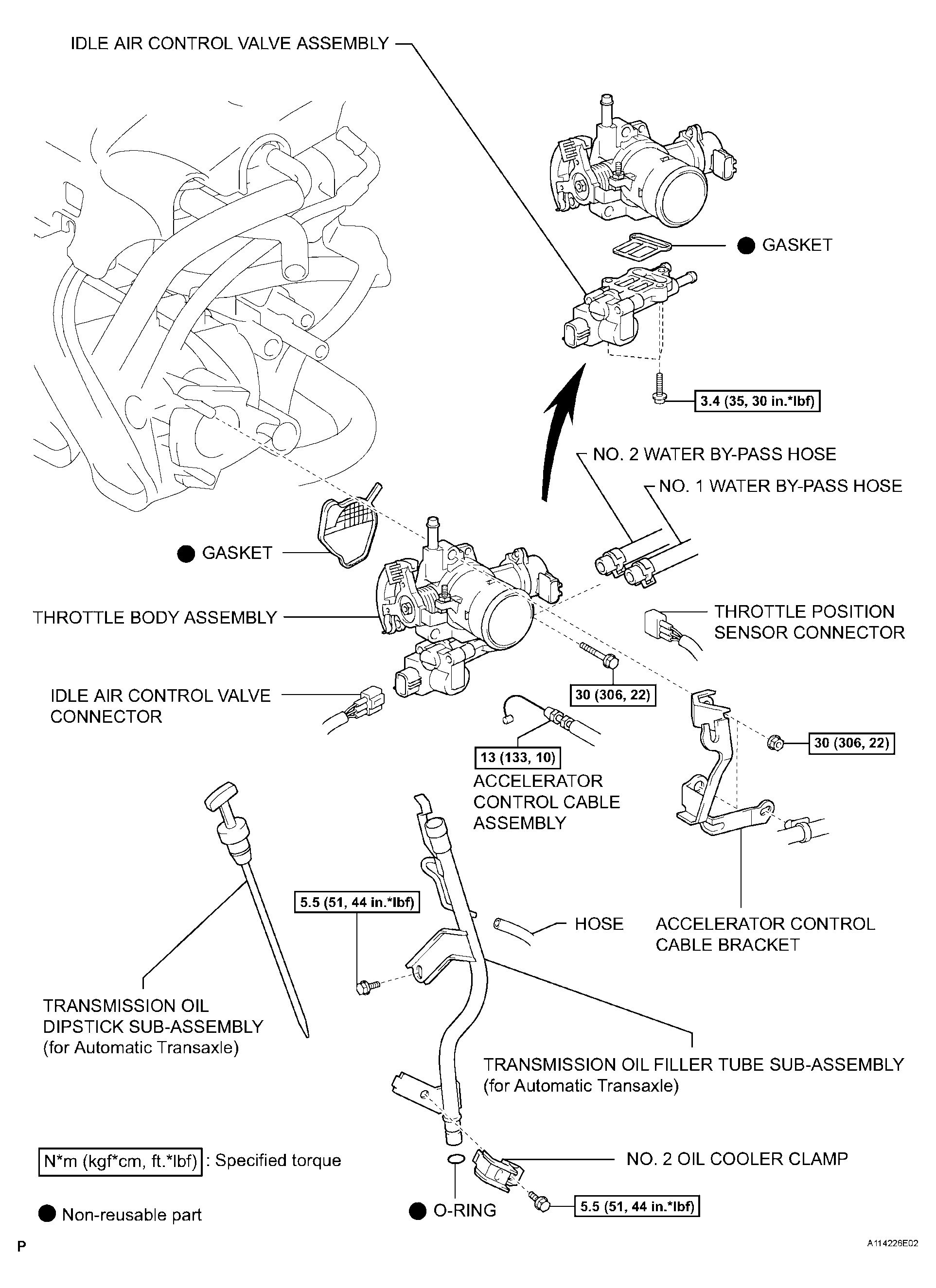

Fig 2: Identifying Idle Air Control Valve Components (2 Of 2)
G04225758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
