Knock Sensor: Installation

  1. INSTALL KNOCK SENSOR
    1. Install the knock sensor with the nut.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    2. Connect the sensor connector.

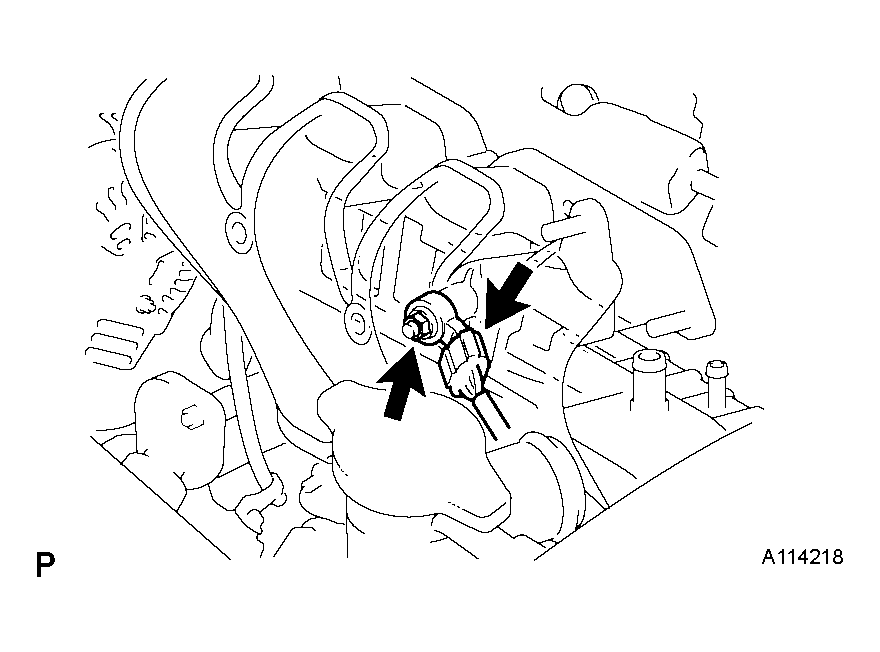

      Fig 1: Connecting Sensor Connector
      G04225771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL STARTER ASSEMBLY (See  INSTALLATION  )
  3. INSTALL ENGINE UNDER COVER RH (See  INSTALLATION  )
  4. INSTALL ENGINE UNDER COVER LH (See  INSTALLATION  )
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
