Fuel Pump Control Circuit: Wiring Diagram

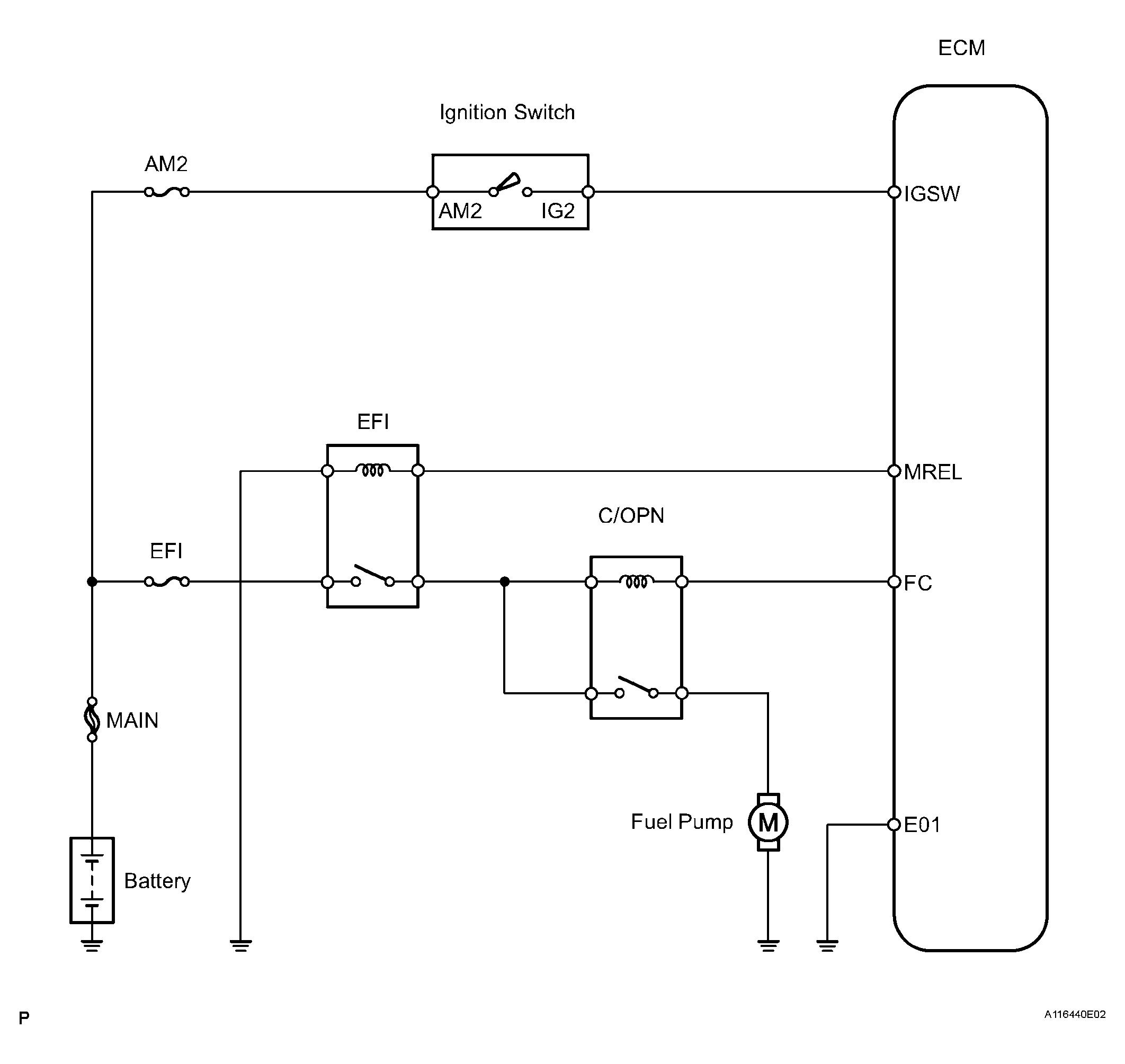

Fig 1: Identifying Fuel Pump Control Circuit Wiring Diagram
G04225695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
