Back Door Glass: Components

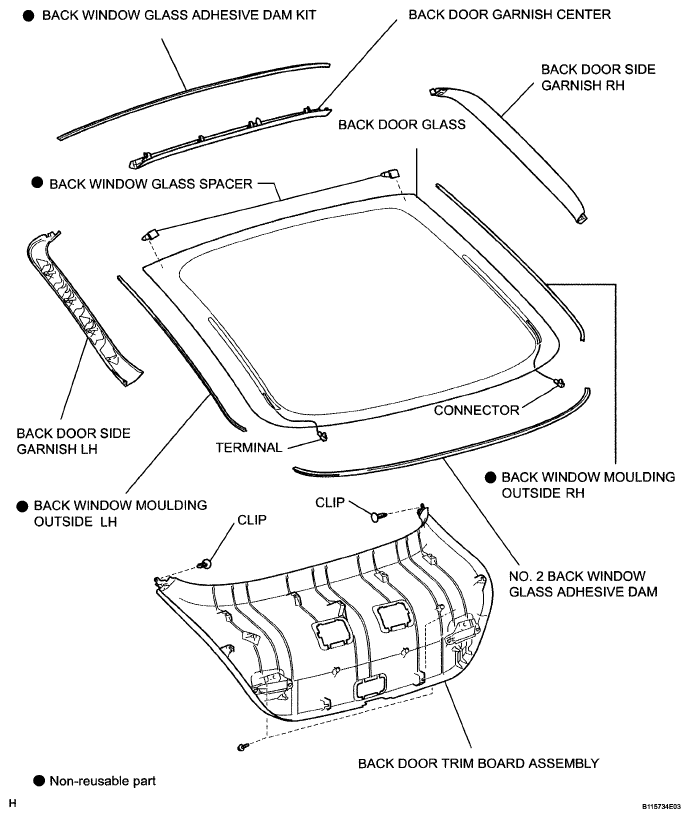

Fig 1: Identifying Back Door Glass Components

G04867388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
