Roof Window Fix Glass: Removal

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
    NOTE: Wait for 90 seconds after disconnecting the terminal to prevent the airbag from deploying. (See AIRBAG SYSTEM )
  2. REMOVE TONNEAU COVER ASSEMBLY
  3. REMOVE DECK BOARD SUB-ASSEMBLY
  4. REMOVE BACK DOOR SCUFF PLATE (See  REMOVAL  )
  5. REMOVE BACK DOOR WEATHERSTRIP
  6. REMOVE SPARE WHEEL COVER ASSEMBLY
  7. REMOVE DECK FLOOR BOX LH (See  REMOVAL  )
  8. REMOVE DECK FLOOR BOX RH (See  REMOVAL  )
  9. REMOVE DECK FLOOR BOX REAR
  10. REMOVE NO. 1 DECK BOARD (See  REMOVAL  )
  11. REMOVE REAR NO. 1 FLOOR BOARD (See  REMOVAL  )
  12. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH (See  REMOVAL  )
  13. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE RH (See  REMOVAL  )
  14. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  15. REMOVE FRONT DOOR SCUFF PLATE RH (See  REMOVAL  )
  16. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH (See  REMOVAL  )
  17. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (See  REMOVAL  )
  18. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  19. REMOVE REAR SEATBACK ASSEMBLY LH (See  REMOVAL  )
  20. REMOVE REAR SEATBACK ASSEMBLY RH (See  DISASSEMBLY  )
  21. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  22. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  23. REMOVE NO. 1 SIDE TRIM ASSEMBLY LH (See  REMOVAL  )
  24. REMOVE NO. 1 SIDE TRIM ASSEMBLY RH (See  REMOVAL  )
  25. REMOVE CENTER PILLAR GARNISH LH (See  REMOVAL  )
  26. REMOVE CENTER PILLAR GARNISH RH (See  REMOVAL  )
  27. REMOVE ROOF SIDE GARNISH INNER LOWER LH (See  REMOVAL  )
  28. REMOVE ROOF SIDE GARNISH INNER LOWER RH (See  REMOVAL  )
  29. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (See  REMOVAL  )
  30. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (See  REMOVAL  )
  31. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH (See  REMOVAL  )
  32. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH (See  REMOVAL  )
  33. REMOVE FRONT PILLAR GARNISH LH (See  REMOVAL  )
  34. REMOVE FRONT PILLAR GARNISH RH (See  REMOVAL  )
  35. REMOVE MAP LIGHT ASSEMBLY (See  REMOVAL  )
  36. REMOVE NO. 1 ROOM LIGHT ASSEMBLY (See  REMOVAL  )
  37. REMOVE NO. 2 ROOM LIGHT ASSEMBLY (See  REMOVAL  )
  38. REMOVE LH VISOR ASSEMBLY (See  REMOVAL  )
  39. REMOVE RH VISOR ASSEMBLY (See  REMOVAL  )
  40. REMOVE VISOR HOLDER LH (See  REMOVAL  )
  41. REMOVE VISOR HOLDER RH (See  REMOVAL  )
  42. REMOVE ASSIST GRIP COVER (See  REMOVAL  )
  43. REMOVE ASSIST GRIP SUB-ASSEMBLY (See  INSTALLATION  )
  44. REMOVE COAT HOOK (See  INSTALLATION  )
  45. REMOVE ROOF HEADLINING ASSEMBLY (See  INSTALLATION  )
  46. REMOVE SIDE RAIL SPACER REAR LH (w/o Curtain Shield Airbag)
    1. Disengage the 4 claws and remove the rear side rail spacer LH.
    Fig 1: Identifying Claws (LH)
    G04867409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE SIDE RAIL SPACER REAR RH (w/o Curtain Shield Airbag)

    HINT:

    Use the same procedure for the RH side and the LH side.

  48. REMOVE SIDE RAIL SPACER FRONT LH (w/o Curtain Shield Airbag)
    1. Disengage the 4 claws and remove the side rail spacer front LH
      2. Fig 2: Identifying Side Rail Spacer Claws For Front LH
      G04867410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE SIDE RAIL SPACER FRONT RH (w/o Curtain Shield Airbag)

    HINT:

    Use the same procedure for the RH side and the LH side.

  50. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH (w/ Curtain Shield Airbag) (See  REMOVAL  )
  51. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH (w/ Curtain Shield Airbag)

    HINT:

    Use the same procedure for the RH side and the LH side.

  52. REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH
    1. Remove the 2 bolts, 2 nuts, and front sliding roof housing mounting bracket LH.
    Fig 3: Identifying Front Sliding Roof Housing Mounting Bracket Bolts And Nuts LH
    G04867411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  54. REMOVE CENTER SLIDING ROOF HOUSING MOUNTING BRACKET LH
    1. Remove the 2 bolts, 2 nuts, and center sliding roof housing mounting bracket LH.
      2. Fig 4: Identifying Bolts, Nuts, And Center Sliding Roof Housing Mounting Bracket LH
      G04867412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. REMOVE CENTER SLIDING ROOF HOUSING MOUNTING BRACKET RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  56. REMOVE SLIDE ROOF RAIL SUB-ASSEMBLY
    1. Remove the 2 clamps.
      Fig 5: Identifying Clamps
      G04867413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 8 nuts and slide roof rail sub-assembly.
  57. REMOVE SUNSHADE TRIM SUB-ASSEMBLY
    1. Remove the 4 screws and sunshade trim sub-assembly.
      2. Fig 6: Identifying Sunshade Trim Sub-Assembly Screws
      G04867414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE ROOF WINDOW FIX GLASS
    1. Remove the 16 nuts and roof window fix glass.

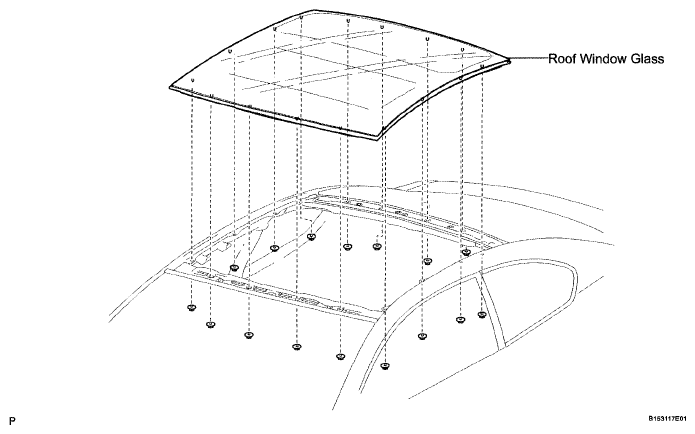

      Fig 7: Identifying Roof Window Glass
      G04867415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: When removing the panel, be careful not to damage the vehicle. Performing this step will require 2 or more technicians.
