Back Door Opener: Notes

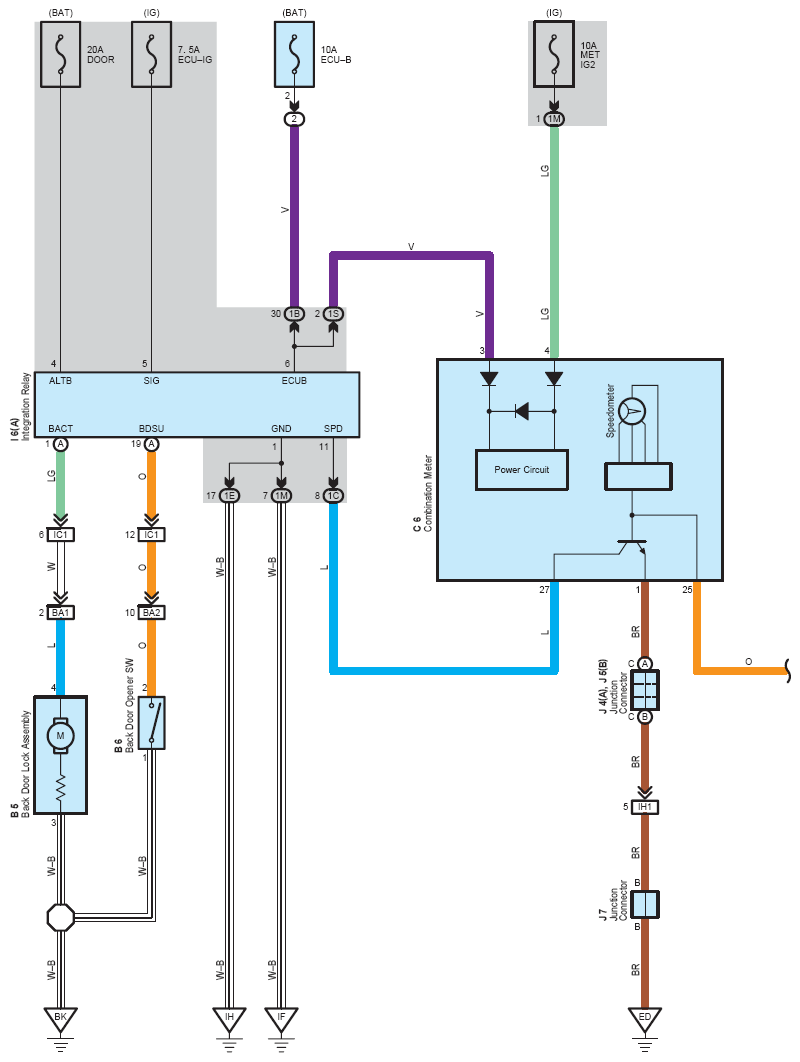

Fig 1: Back Door Opener System Wiring Diagram (1 Of 2)
G08759402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Back Door Opener System Wiring Diagram (2 Of 2)
G08759403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
