Cruise Control: Notes

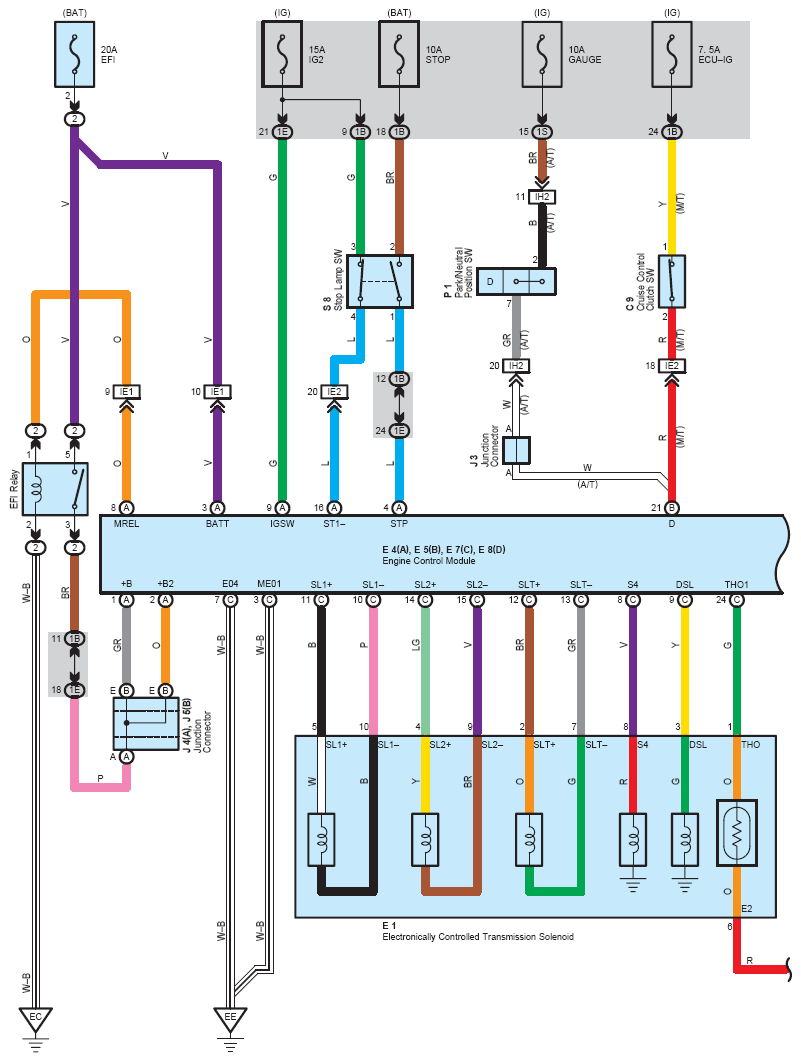

Fig 1: Cruise Control System Wiring Diagram (1 Of 3)
G08759411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

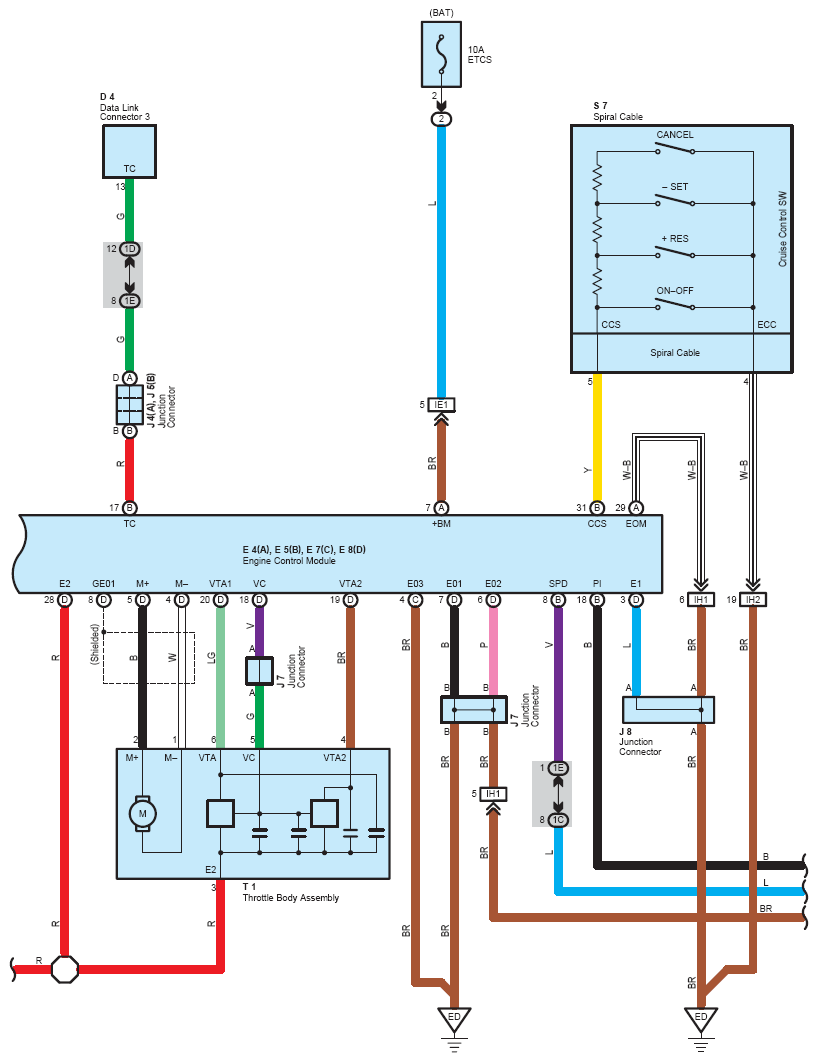

Fig 2: Cruise Control System Wiring Diagram (2 Of 3)
G08759412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

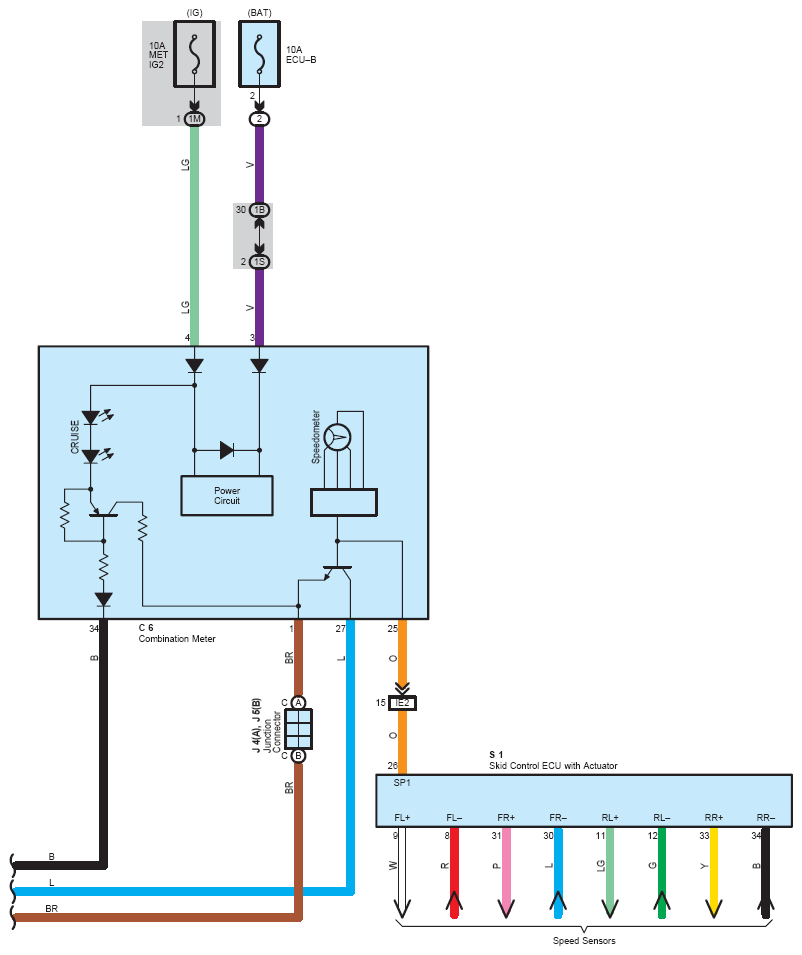

Fig 3: Cruise Control System Wiring Diagram (3 Of 3)
G08759413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
