Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

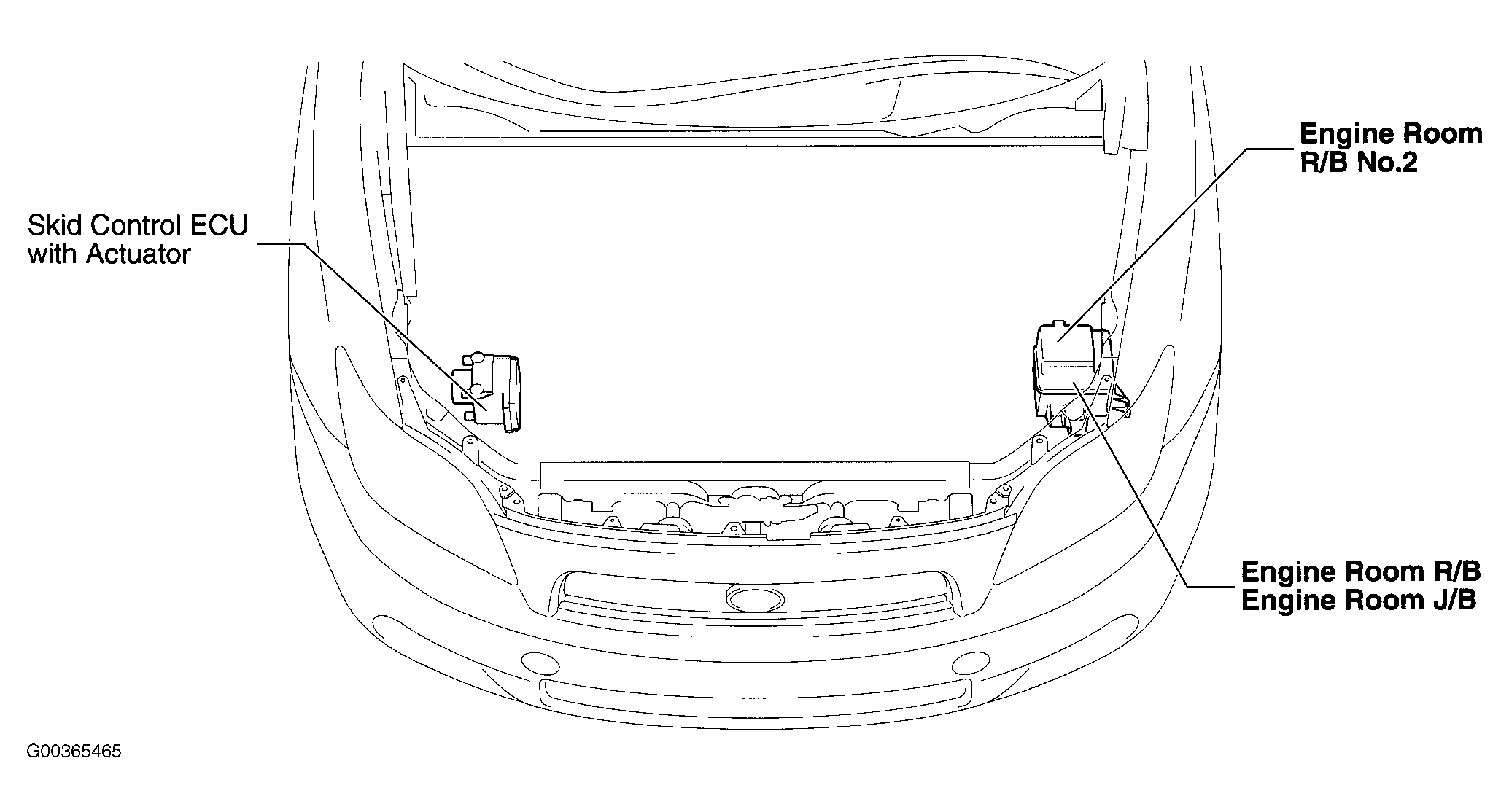

| Engine Room J/B | Left side of engine compartment. See Figure. |
| Engine Room R/B | Left side of engine compartment. See Figure. |
| Engine Room R/B No. 2 | Left side of engine compartment. See Figure. |

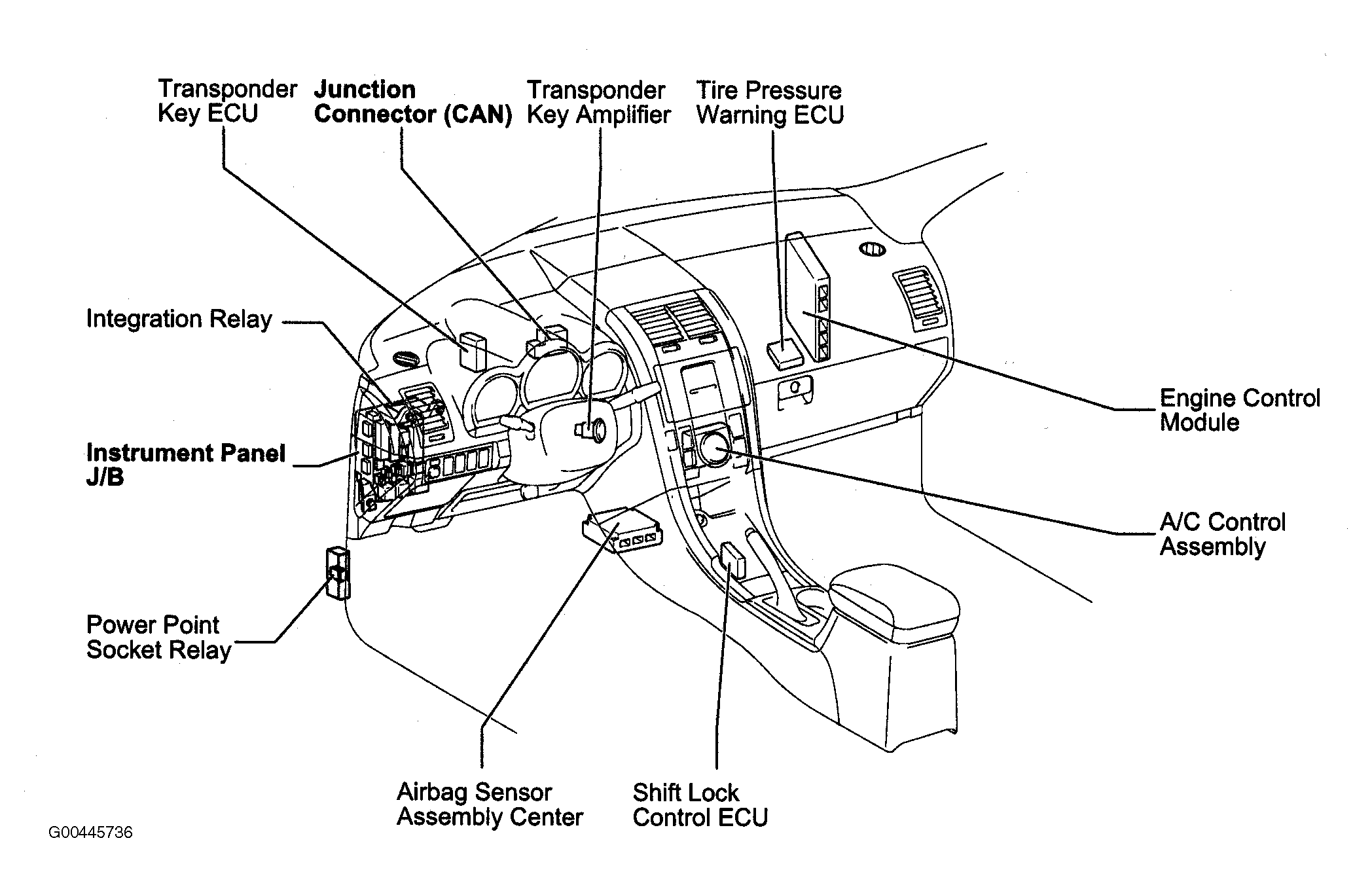

| Instrument Panel J/B | Behind left side of dash. See Figure. |
