On-Vehicle Inspection
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- INSPECT CIRCUIT OPENING RELAY

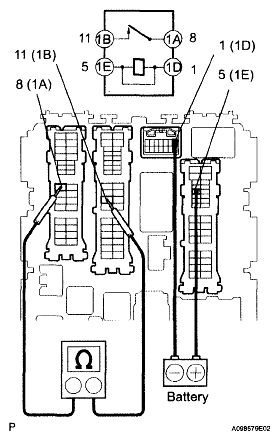

- Measure the resistance between the terminals.
Standard resistance
CIRCUIT OPENING RELAY TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition 1B(11) - 1A(8) 10 kΩ or higher 1B(11) - 1 A (8) Below 1 Ω (when battery voltage is applyed to terminals 1E (5) and 1D (1)) If the result is not as specified, replace the instrument panel junction block.
- Measure the resistance between the terminals.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see
INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery
- Perform initialization (see
INITIALIZATION
).
