Fuel Pump Control Circuit: Wiring Diagram

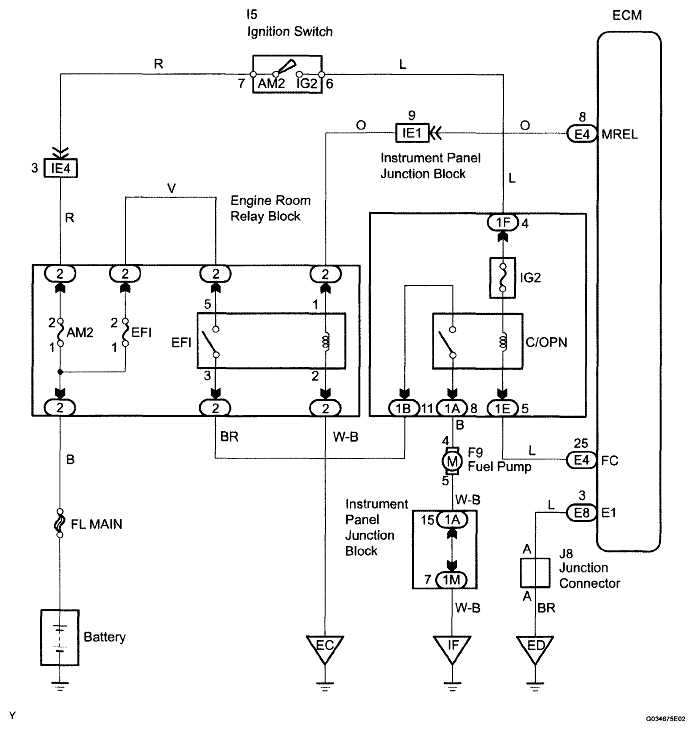

Fig 1: Identifying Fuel Pump Control Wiring Diagram
G04869301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
