Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
      1. Vehicle Identification Number
      2. Certification Label

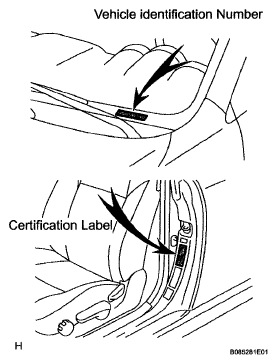

        Fig 1: Identifying Vehicle Identification Number Location
        G04864899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustration.
      1. Engine Serial Number
      2. Transaxle Serial Number

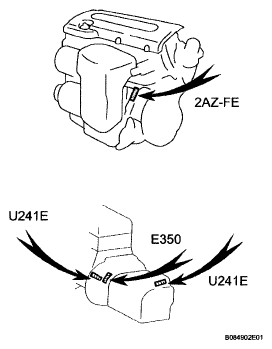

        Fig 2: Identifying Engine Serial Number And Transaxle Serial Number Location
        G04864900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
