Automatic Transaxle Assembly: Components

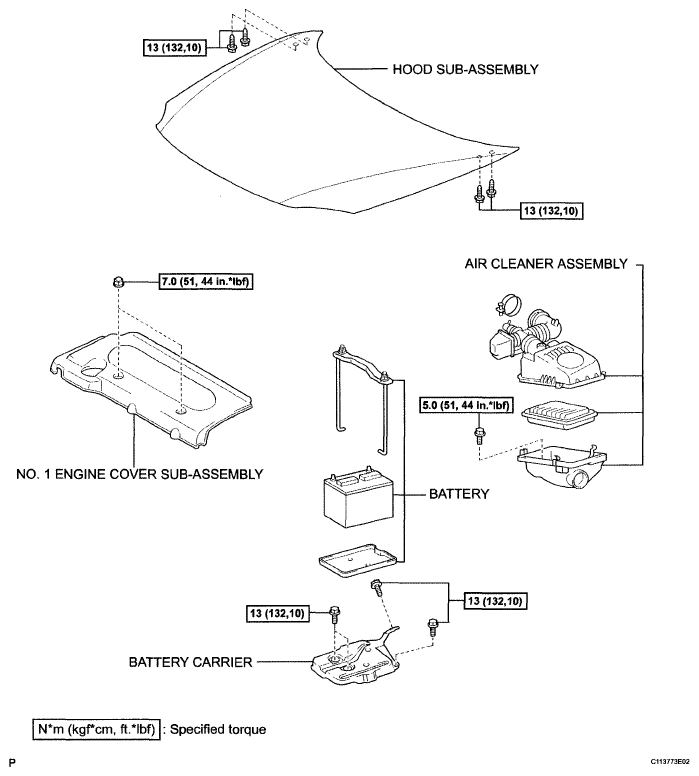

Fig 1: Identifying Automatic Transaxle Assembly Components With Specifications (1 Of 4)
G04866231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

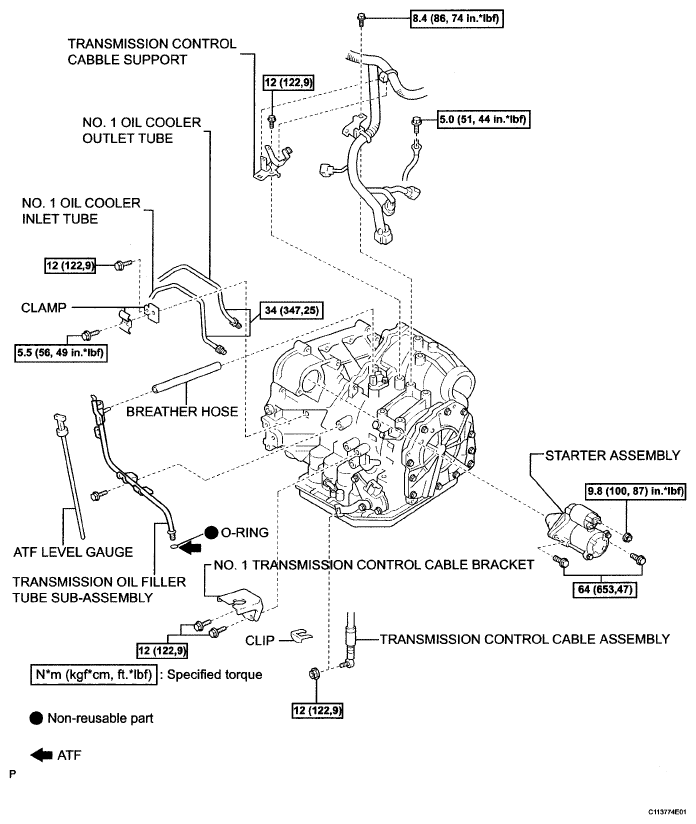

Fig 2: Identifying Automatic Transaxle Assembly Components With Specifications (2 Of 4)
G04866232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

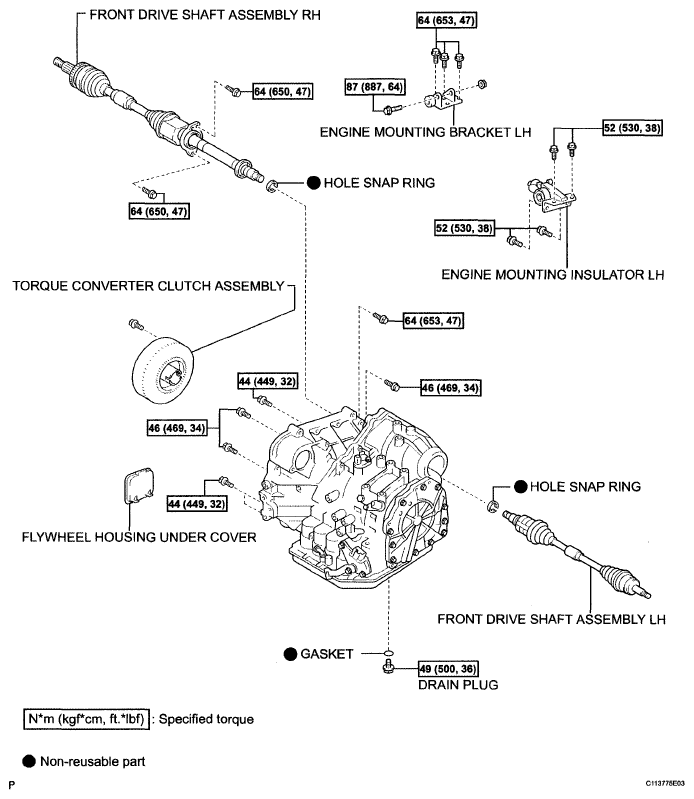

Fig 3: Identifying Automatic Transaxle Assembly Components With Specifications (3 Of 4)
G04866233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

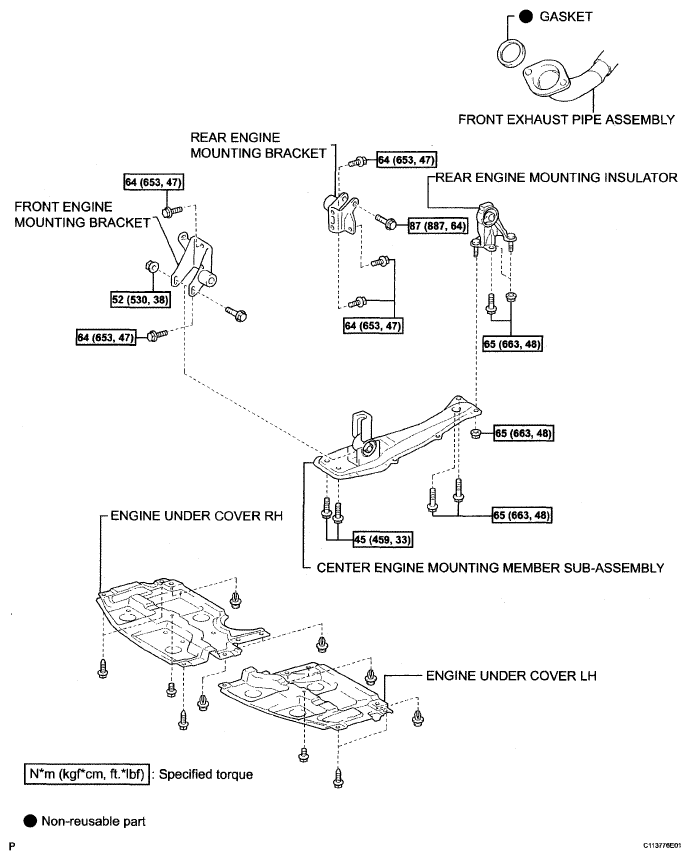

Fig 4: Identifying Automatic Transaxle Assembly Components With Specifications (4 Of 4)
G04866234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
