Automatic Transaxle System: Initialization

RESET MEMORY
NOTE:
- Perform the RESET MEMORY (AT initialization) when replacing the automatic transaxle assembly, engine assembly or ECM.
- The RESET MEMORY can be performed only with the Intelligent tester.
HINT:

The ECM memorizes the condition that the ECT controls the automatic transaxle assembly and engine assembly according to those characteristics. Therefore, when the automatic transaxle assembly, engine assembly, or ECM has been replaced, it is necessary to reset the memory so that the ECM can memorize the new information.

Reset procedure is as follows.
1. Turn the ignition switch off.
2. Connect the intelligent tester to the DLC3.
3. Turn the ignition switch to the ON position and push the intelligent tester main switch on.
4. Select the item "DIAGNOSIS / ENHANCED OBD II".
5. Perform the reset memory procedure from the ENGINE menu.
  CAUTION: After performing the RESET MEMORY, be sure to perform the ROAD TEST (See HOW TO PROCEED WITH TROUBLESHOOTING ) described earlier.

  HINT:

  The ECM is learned by performing the ROAD TEST.

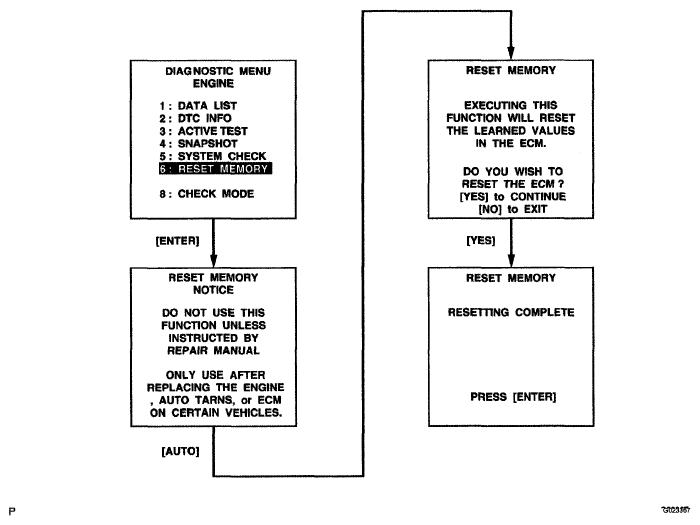

  1. Tester menu flow:

    Fig 1: Identifying ECM Flow Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
