Terminals Of ECM

  1. ECM

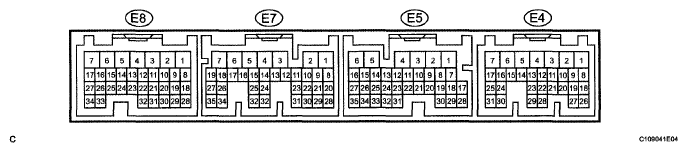

    Fig 1: Identifying Connector Terminals Of ECM
    G04866052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Each ECM terminal's standard voltage is shown in the table below.

    In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to inspected. The standard voltage between the terminals is shown under "Specific Condition".

    Use the illustration above as a reference for the ECM terminals.

    ECM TERMINALS VOLTAGE CHART

    Symbols (Terminals No.) Wiring Color Terminal Description Condition Specified Condition
    D(E5-21)-E1 (E8-3) W-L D shift position switch signal Ignition switch to the ON position and shift lever D and 3 position 10 to 14 V
    Ignition switch to the ON position and shift lever except D and 3 position Below 1 V
    R(E5-11)-E1(E8-3) P-L R shift position switch signal Ignition switch to the ON position and shift lever R position 10 to 14 V
    Ignition switch to the ON position and shift lever except R position Below 1 V
    SPD (E5-8) - E1 (E8-3) V-L Speed signal Vehicle speed 20 km/h (12mph) Pulse generation (See waveform 7)
    STP(E5-4)-E1(E8-3) L-L Stop light switch signal Brake pedal is depressed 7.5 to 14 V
    Brake pedal is released Below 1.5 V
    3(E5-19)-E1 (E8-3) G-L 3 shift position switch signal Ignition switch to the ON position and shift lever 3 position 10 to 14 V
    Ignition switch to the ON position and shift lever except 3 position Below 1 V
    2 (E5-10) - E1 (E8-3) R-L 2 shift position switch signal Ignition switch to the ON position and shift lever 2 position 10 to 14 V
    Ignition switch to the ON position and shift lever except 2 position Below 1 V
    L (E5-9) - E1 (E8-3) LG-L L shift position switch signal Ignition switch to the ON position and shift lever L position 10 to 14 V
    Ignition switch to the ON position and shift lever except L position Below 1 V
    NSW (E4-30) - E1 (E8-3) Y-L Park neutral switch signal Ignition switch to the ON position and shift lever P and N position Below 2 V
    Ignition switch to the ON position and shift lever except P and N position 10 to 14 V
    DSL (E7-9) - E1 (E8-3) Y-L DSL solenoid signal Vehicle speed 65 km/h (40mph), lock-up (ON to OFF) Pulse generation (See waveform 2)
    S4 (E7-8) - E1 (E8-3) V-L S4 solenoid signal Ignition switch to the ON position Below 1 V
    4th gear 10 to 14 V
    Except 4th gear Below 1 V
    SL2+(E7-14)-SL2-(E7-15) LG-V SL2 solenoid signal Engine idle speed Pulse generation (See waveform 3)
    Ignition switch to the ON position Below 1 V
    1st or 2nd gear 10 to 14 V
    3rd or O/D gear Below 1 V
    SL1+(E7-11)-SL1-(E7-10) B-P SL1 solenoid signal Engine idle speed Pulse generation (See waveform 4)
    Ignition switch to the ON position 10 to 14 V
    1st gear 10 to 14 V
    Except 1st gear Below 1 V
    NC+ (E7-34) - NC- (E7-26) R-G Speed sensor (NC) signal Vehicle speed 30 km/h (19mph): (3rd gear) Engine speed 1,400 rpm Pulse generation (See waveform 5)
    NT+ (E7-35) - NT- (E7-27) L-LG Speed sensor (NT) signal Vehicle speed 20 km/h (12mph) Pulse generation (See waveform 6)
    SLT+ (E7-12) - SLT- (E7-13) BR-GR SLT solenoid signal Engine idle speed Pulse generation (See waveform 1)
    THO1 (E7-24) - E2 (E8-28) G-R ATF temperature sensor signal ATF temperature: 115°C (239°F) or more Below 1.5 V
    1. Waveform 1

      Reference:

      WAVEFORM 1 REFERENCE

      Terminal SLT+ - SLT-
      Tool setting 5 V/DIV, 1ms./DIV.
      Vehicle condition Engine idle speed
      Fig 2: Identifying Waveform 1
      G04866053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Waveform 2

      Reference:

      WAVEFORM 2 REFERENCE

      Terminal DSL-E1
      Tool setting 10 V/DIV., 100ms./DIV.
      Vehicle condition Vehicle speed 65 km/h (40 mph), lock-up (ON to OFF)
      Fig 3: Identifying Waveform 2
      G04866054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Waveform 3

      Reference:

      WAVEFORM 3 REFERENCE

      Terminal SL2+ - SL2-
      Tool setting 5 V/DIV, 1ms./DIV.
      Vehicle condition Engine idle speed
      Fig 4: Identifying Waveform 3
      G04866053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Waveform 4

      Reference:

      WAVEFORM 4 REFERENCE

      Terminal SL1+-SL1-
      Tool setting 5 V/DIV, 1 ms./DIV.
      Vehicle condition Engine idle speed
      Fig 5: Identifying Waveform 4
      G04866056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Waveform 5

      Reference:

      WAVEFORM 5 REFERENCE

      Terminal NC+-NC-
      Tool setting 1 V/DIV, 1ms./DIV.
      Vehicle condition Vehicle speed 30 km/h (19 mph): (3rd gear) Engine speed 1.400 rpm
      Fig 6: Identifying Waveform 5
      G04866057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Waveform 6

      Reference:

      WAVEFORM 6 REFERENCE

      Terminal NT+ - NT-
      Tool setting 5 V/DIV, 0.5ms./DIV.
      Vehicle condition Vehicle speed 20 km/h (12 mph)
      Fig 7: Identifying Waveform 6
      G04866058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Waveform 7

      Reference:

      WAVEFORM 7 REFERENCE

      Terminal SPD - E1
      Tool setting 5 V/DIV., 20ms./DIV.
      Vehicle condition Vehicle speed 20 km/h (12 mph)
      Fig 8: Identifying Waveform 7
      G04866059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
