Park / Neutral Position Switch: Components

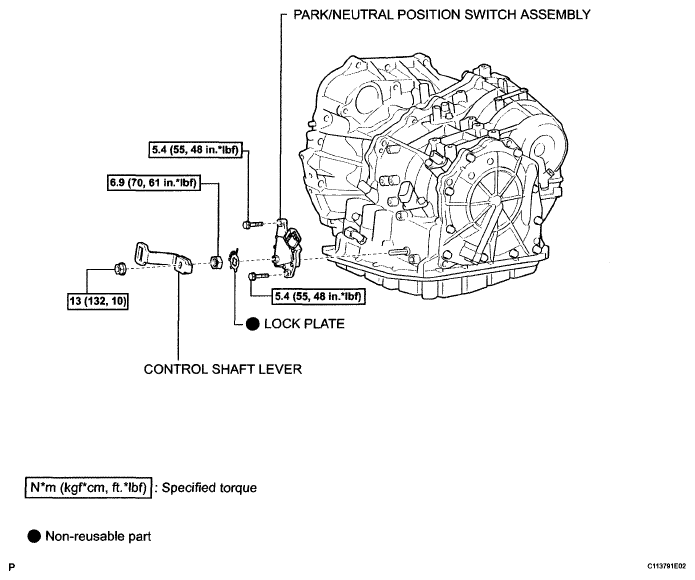

Fig 1: Identifying Park/Neutral Position Switch Components With Specification
G04866130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
