Transmission Wire: Components

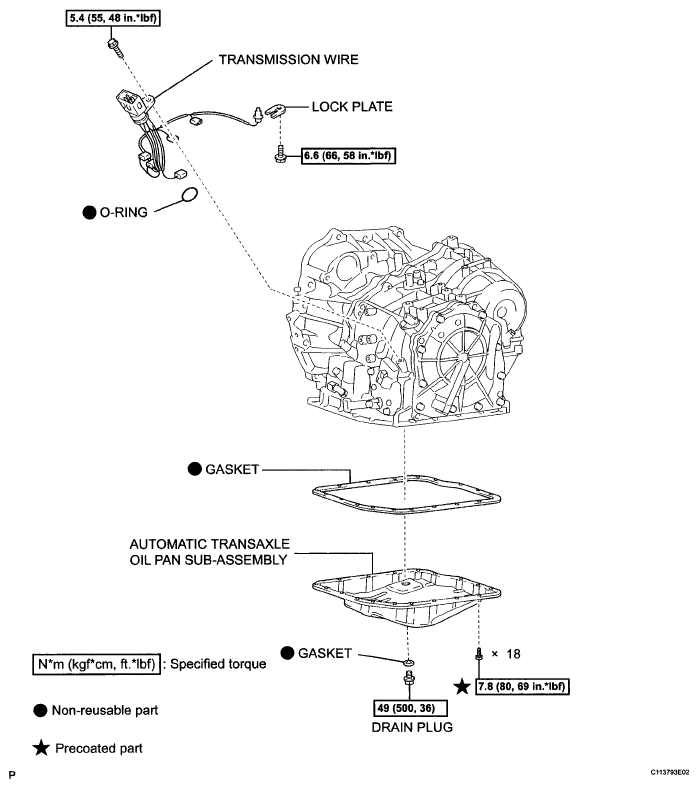

Fig 1: Identifying Transmission Wire Components With Specifications
G04866147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
