Ignition Coil: Components

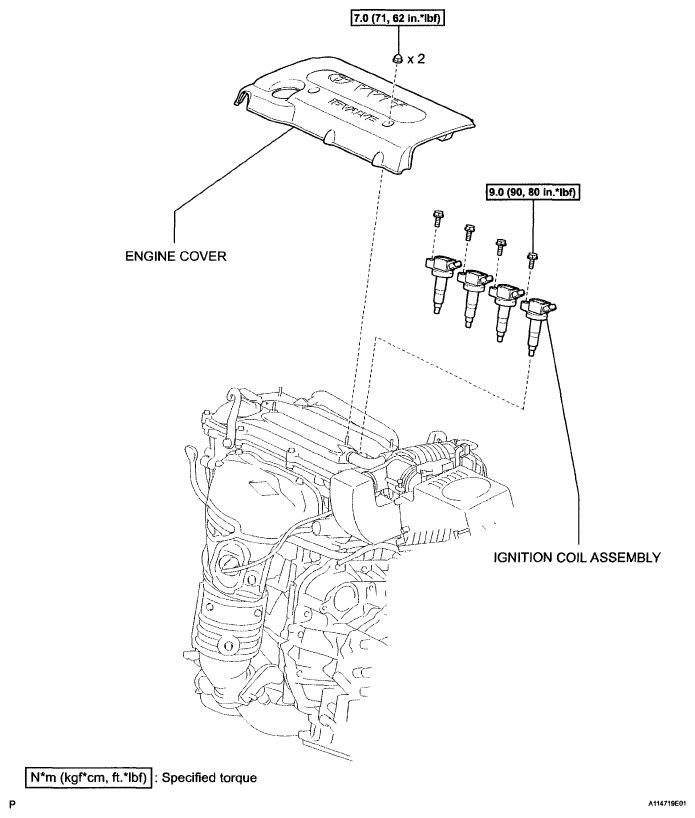

Fig 1: Identifying Ignition Coil Components With Specifications
G04865929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
