Engine Control System (2AZ-FE): ECM: Components

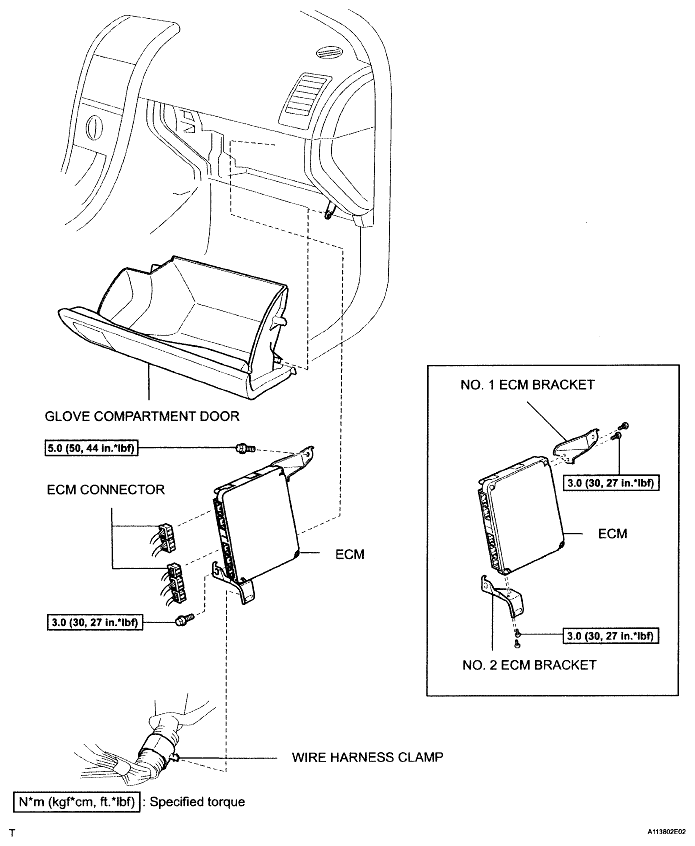

Fig 1: Identifying ECM Components With Specifications
G04869404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
