Knock Sensor: Components

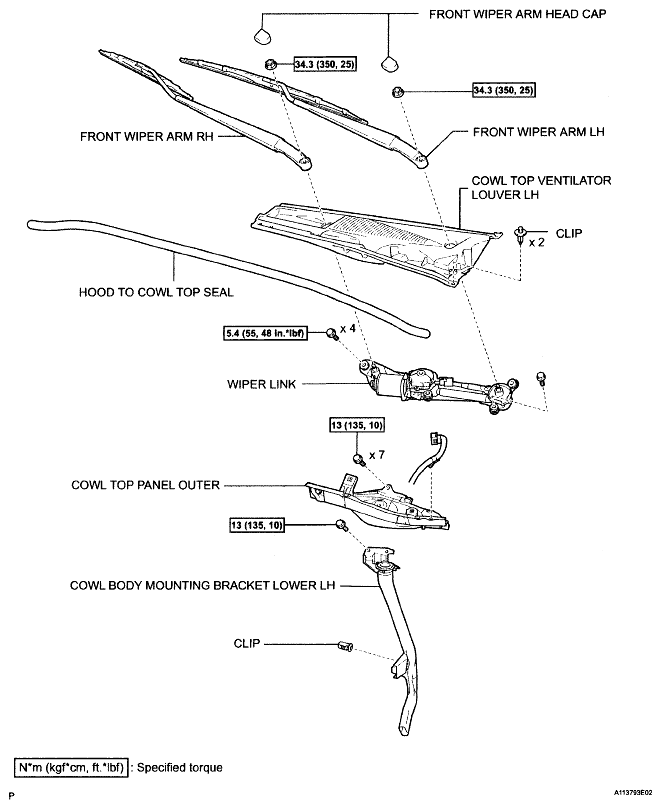

Fig 1: Identifying Components With Specifications (1 Of 5)
G04869371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

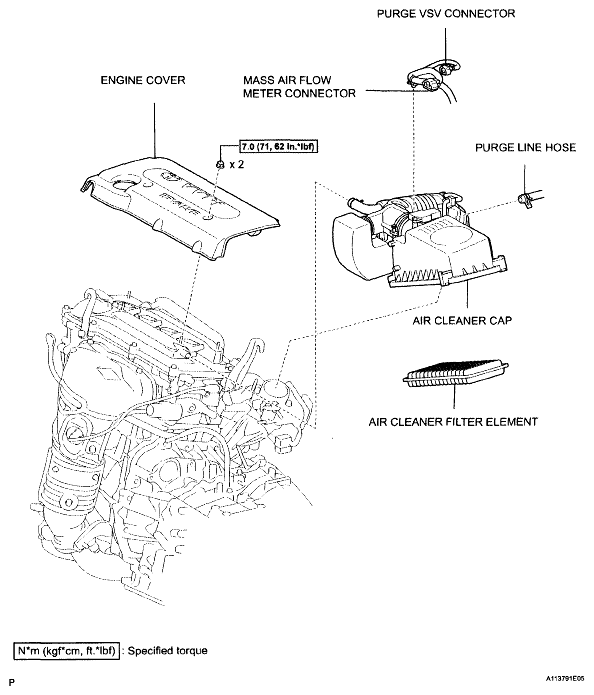

Fig 2: Identifying Components With Specifications (2 Of 5)
G04869372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

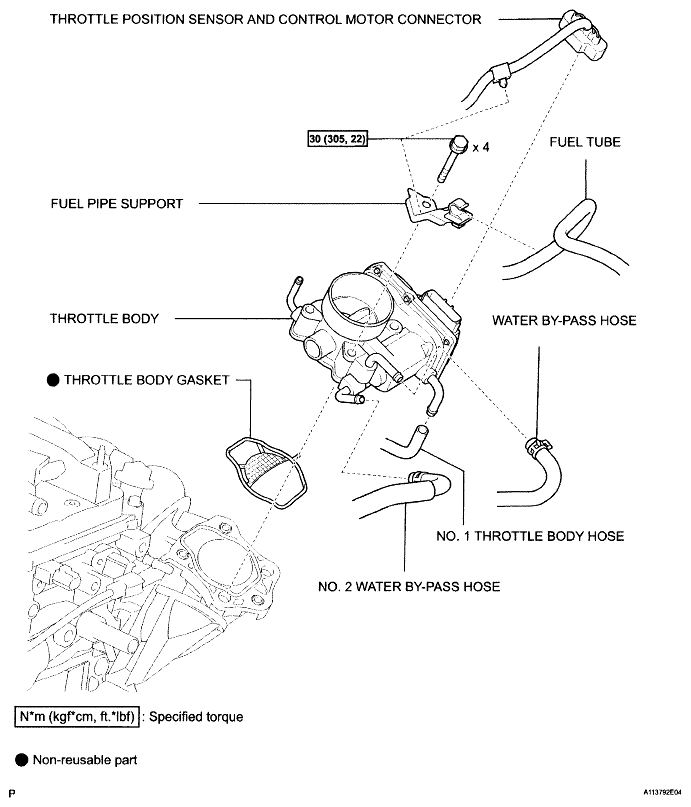

Fig 3: Identifying Components With Specifications (3 Of 5)
G04869373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

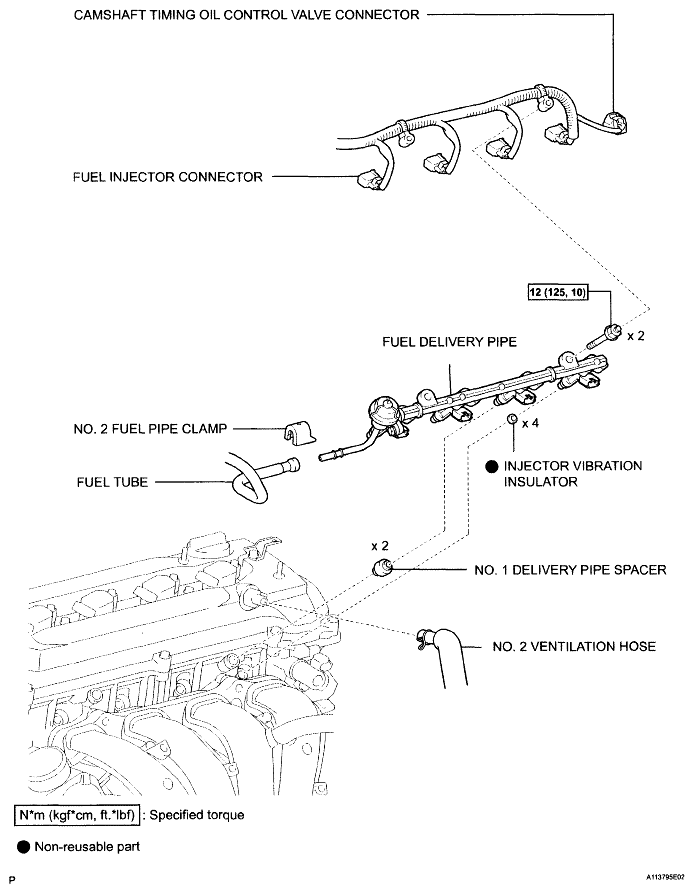

Fig 4: Identifying Components With Specifications (4 Of 5)
G04869374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

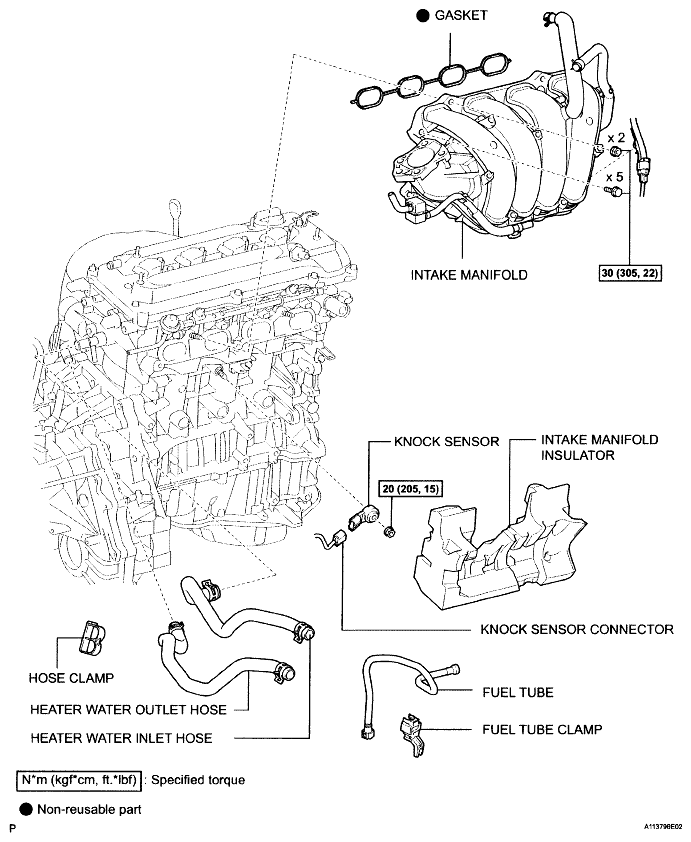

Fig 5: Identifying Components With Specifications (5 Of 5)
G04869375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
