MIL Circuit: Wiring Diagram

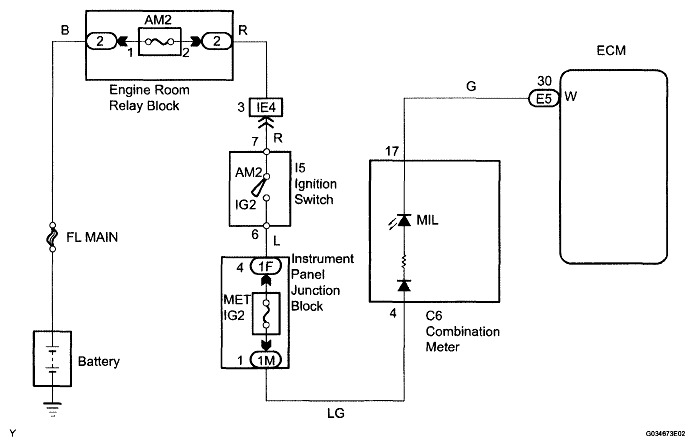

Fig 1: Identifying MIL Wiring Diagram
G04869310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
