2AZ-FE Engine Control System: ECM: Components

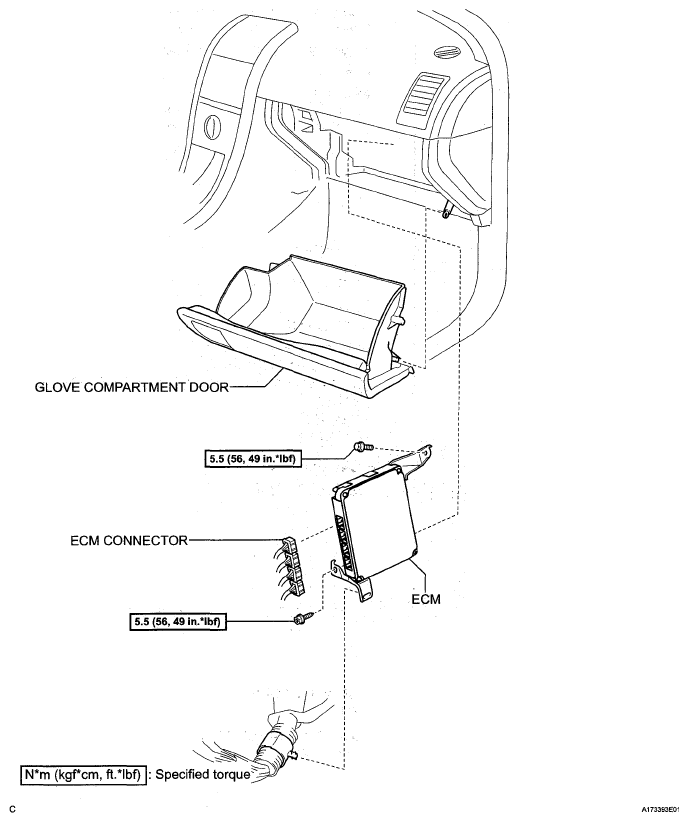

Fig 1: ECM Replacement Components With Torque Specifications
G05539214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
