Fuel Pump Control Circuit: Wiring Diagram

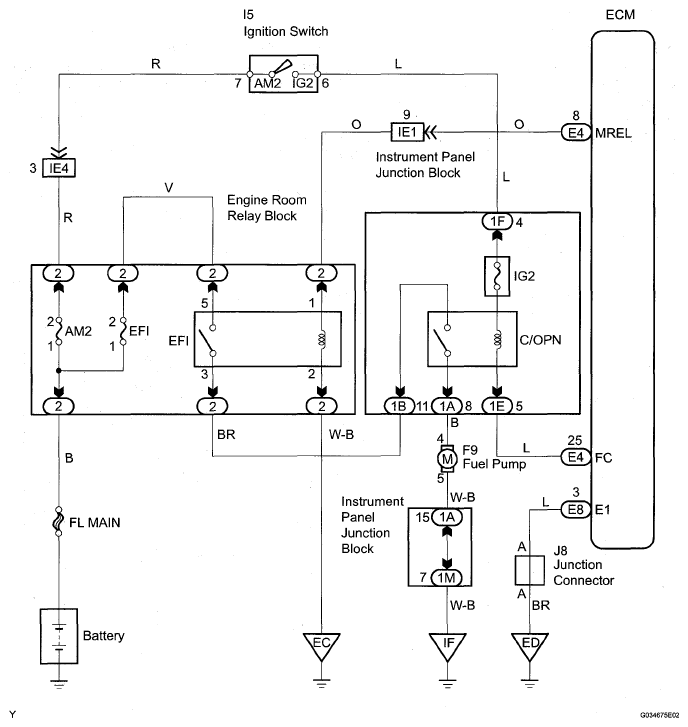

Fig 1: Engine Room Relay Block - Wiring Diagram
G05539164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
